Maintenance

278 FTB-1v2 and FTB-1v2 Pro

Modifying the Low-Battery Thresholds

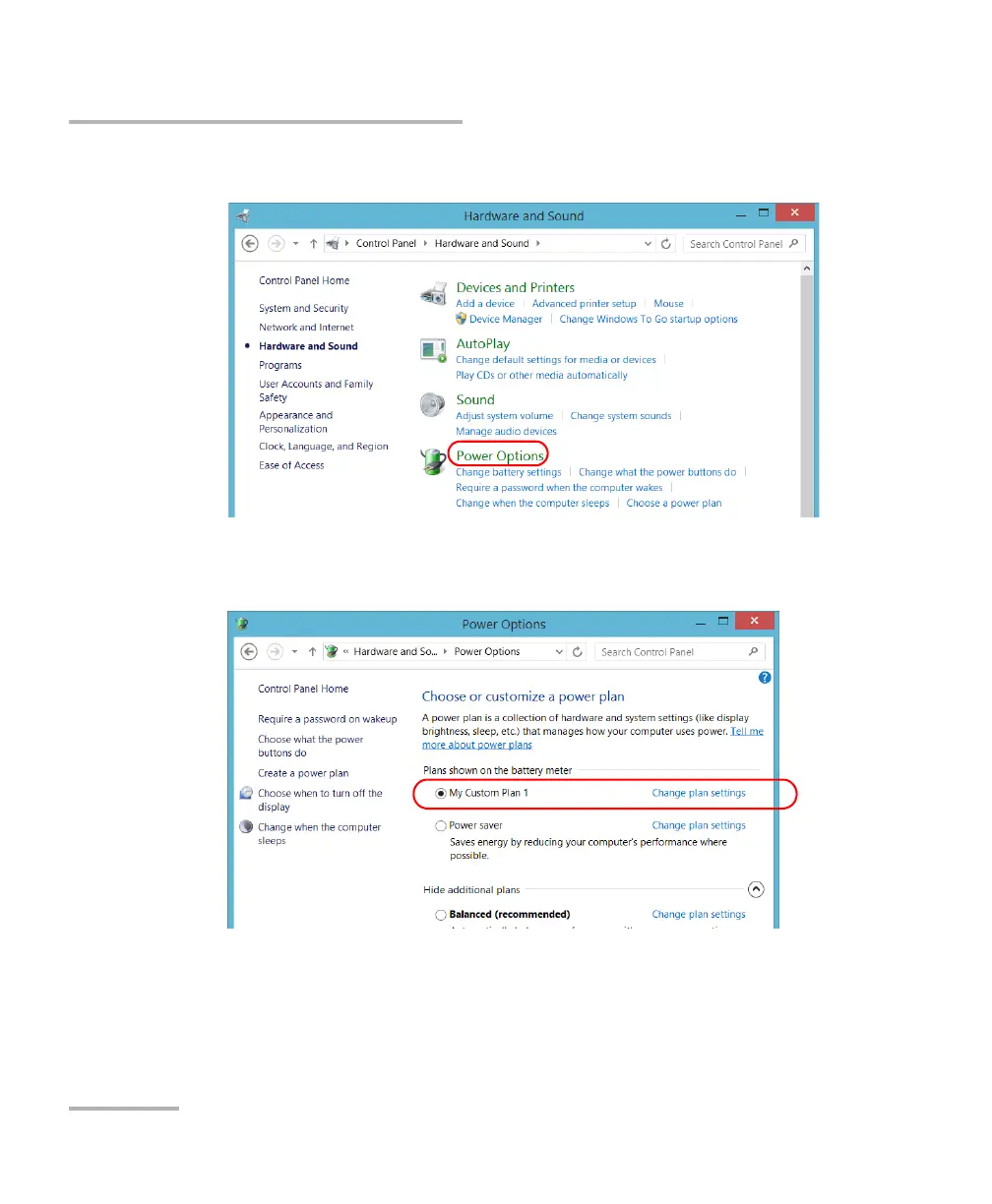

3. Tap Hardware and Sound > Power Options.

4. From the list of available power plans, locate the set of parameters that

you want to modify.

5. Tap Change plan settings (appearing next to the power plan).
