Maintenance

280 FTB-1v2 and FTB-1v2 Pro

Modifying the Low-Battery Thresholds

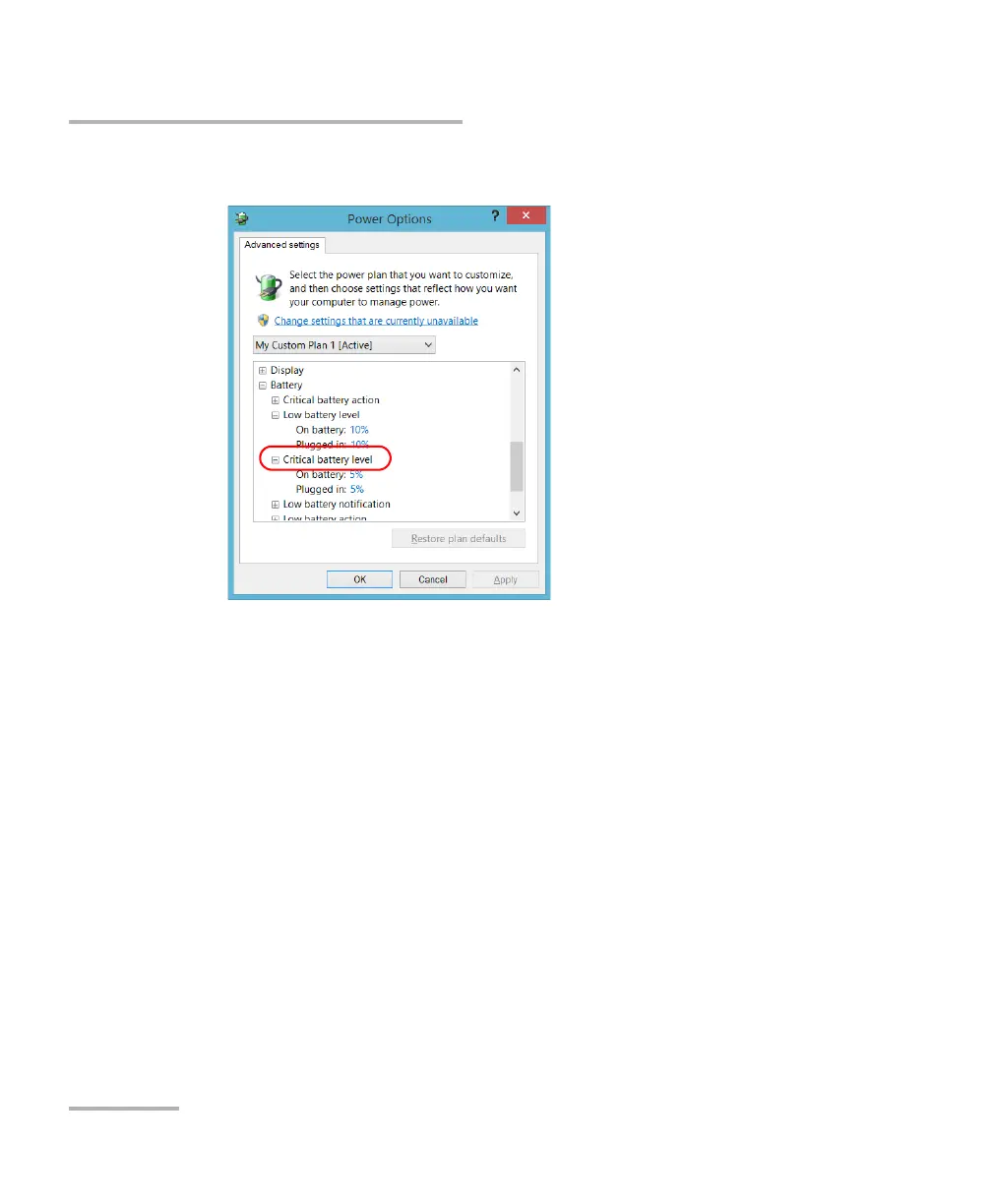

8. From the list of settings, go to Battery > Critical battery level.

9. Under On battery, enter the new value.
