Maintenance

FTB-1v2 and FTB-1v2 Pro 289

Replacing the Batteries (High-Power Dual Carrier)

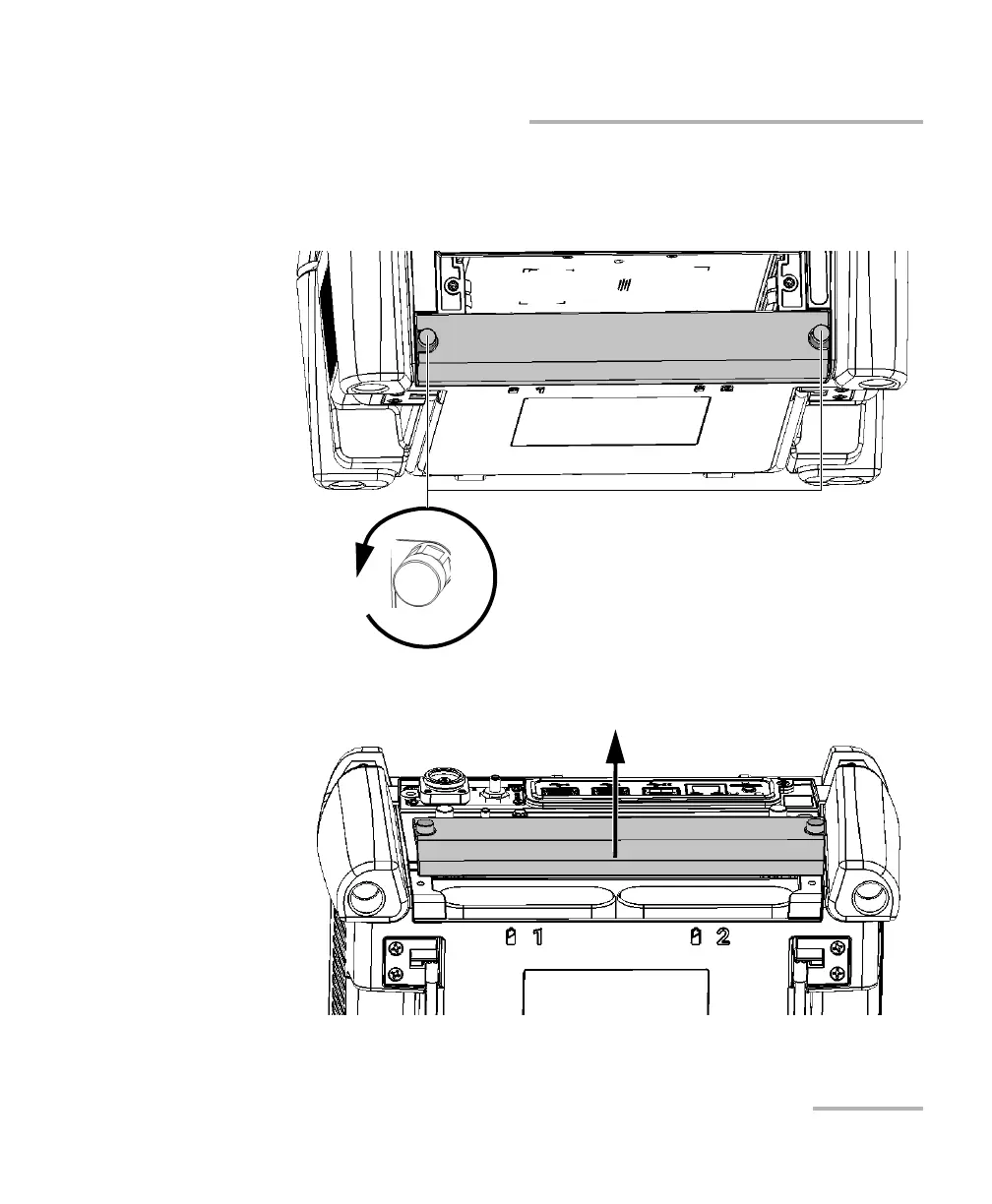

1b. Turn the battery compartment screws counterclockwise until the

compartment door is loose. Since they are captive screws, you

cannot remove them completely.

1c. Remove the battery compartment door.

Turn screws

counterclockwise
