Troubleshooting

FTB-1v2 and FTB-1v2 Pro 337

Restoring Your Unit to Normal Operation

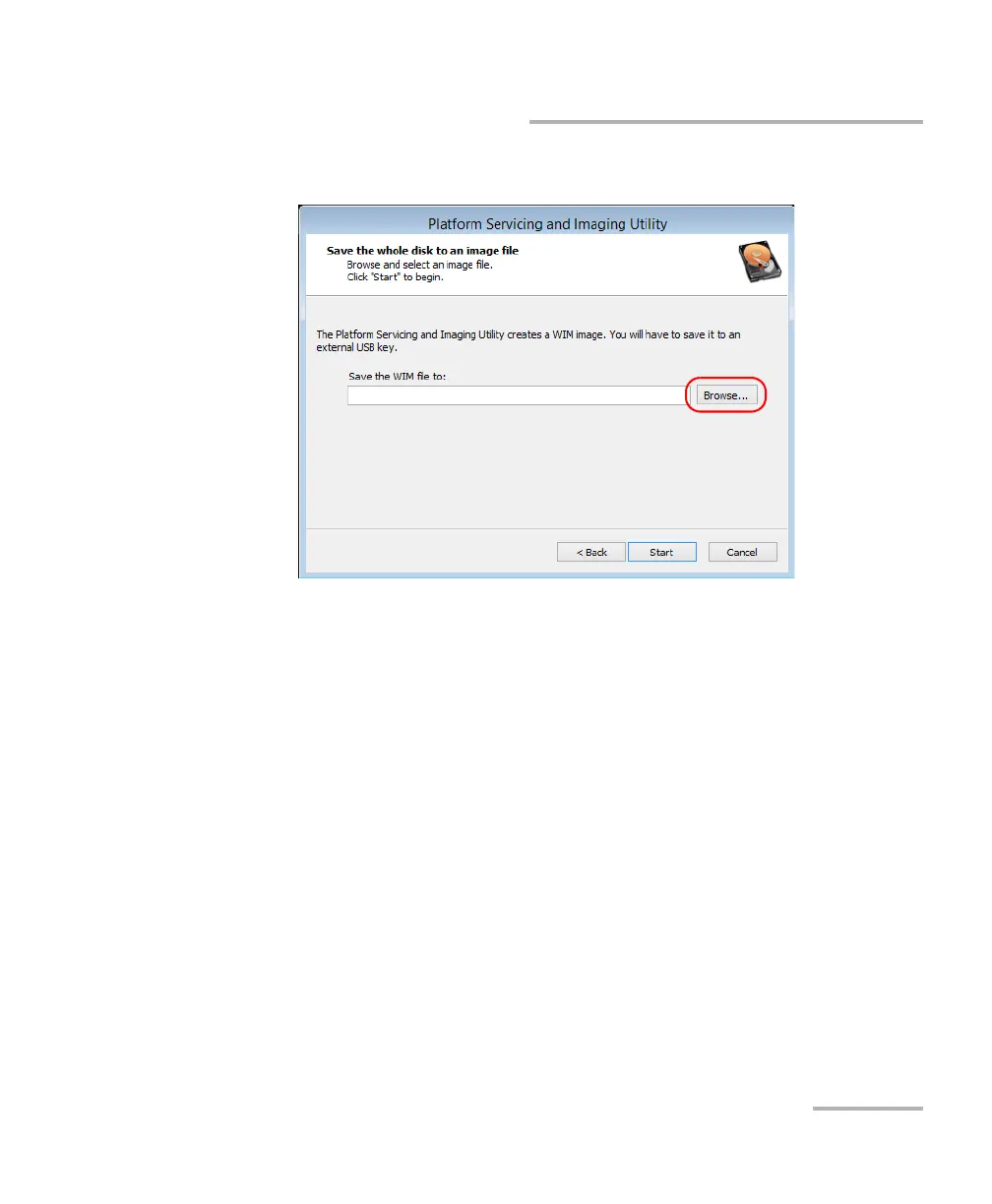

10. Tap Browse.

11. Locate the USB key, and then double-tap its identifier to access the

contents.

12. Select the desired folder.

13. Enter a file name, and then tap Save.
