Communicating Through TCP/IP Over Telnet
FTB-1v2 and FTB-1v2 Pro 459
Executing SCPI Commands Over Telnet
To execute SCPI commands over Telnet from a remote
Linux client:
1. Establish a connection to the Telnet service as follows:

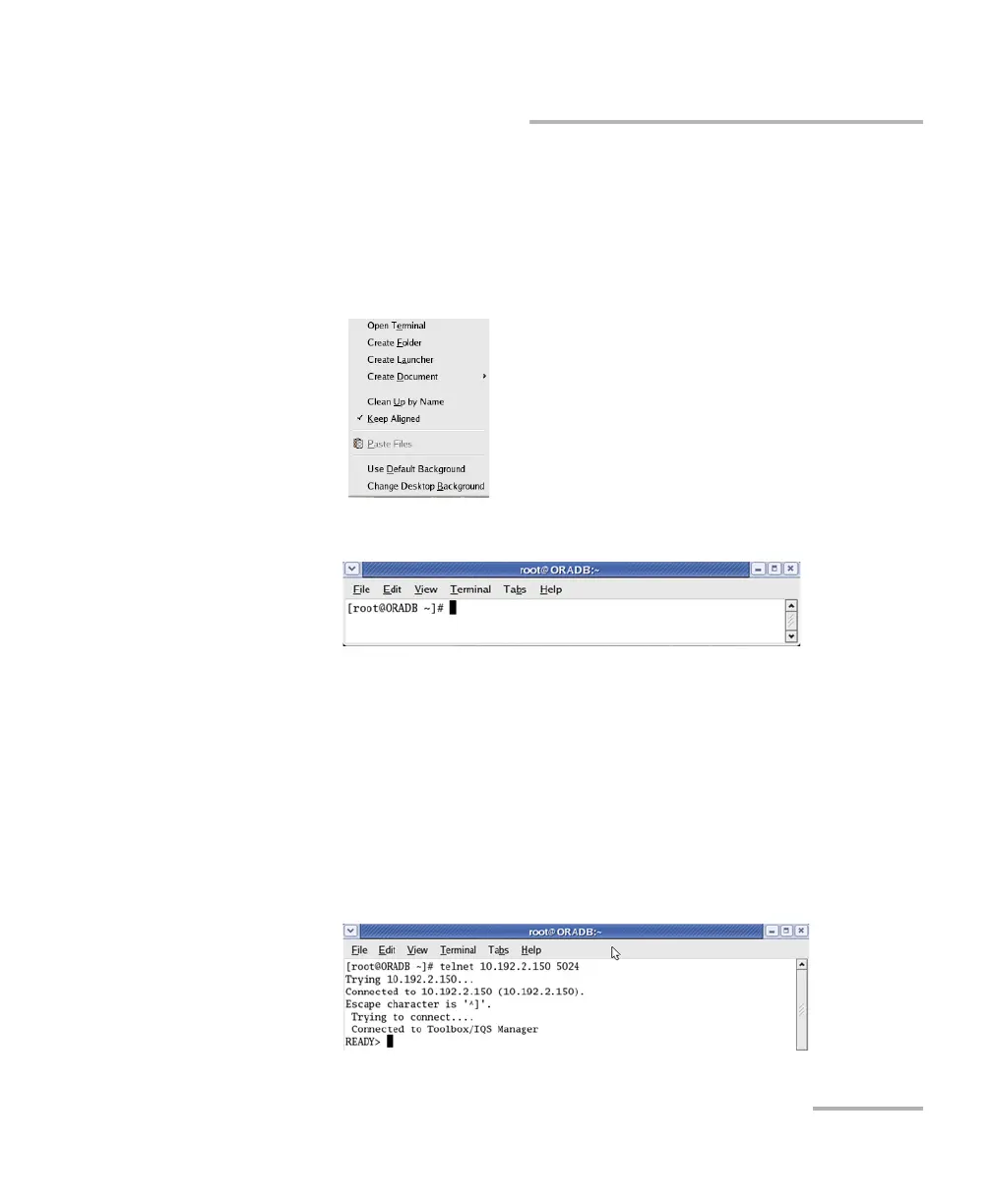

1a. From your computer, right-click on the desktop, and then click
Open Terminal.
The command prompt is displayed in the Telnet editor window.
1b. Connect to the TCP/IP Telnet Service by typing the
OPEN
<IP_ADDRESS_OF_TELNET_SERVER>
<PORT>
command:
Example: open 10.192.2.45 5024
Note: Port 5024 is designated for sending SCPI commands in the Telnet protocol.
The connection is established when the message Connected to
Toolbox/IQS Manager is displayed in the Telnet editor window.
