Getting Started with Your Unit

48 FTB-1v2 and FTB-1v2 Pro

Configuring Your Unit At First Startup

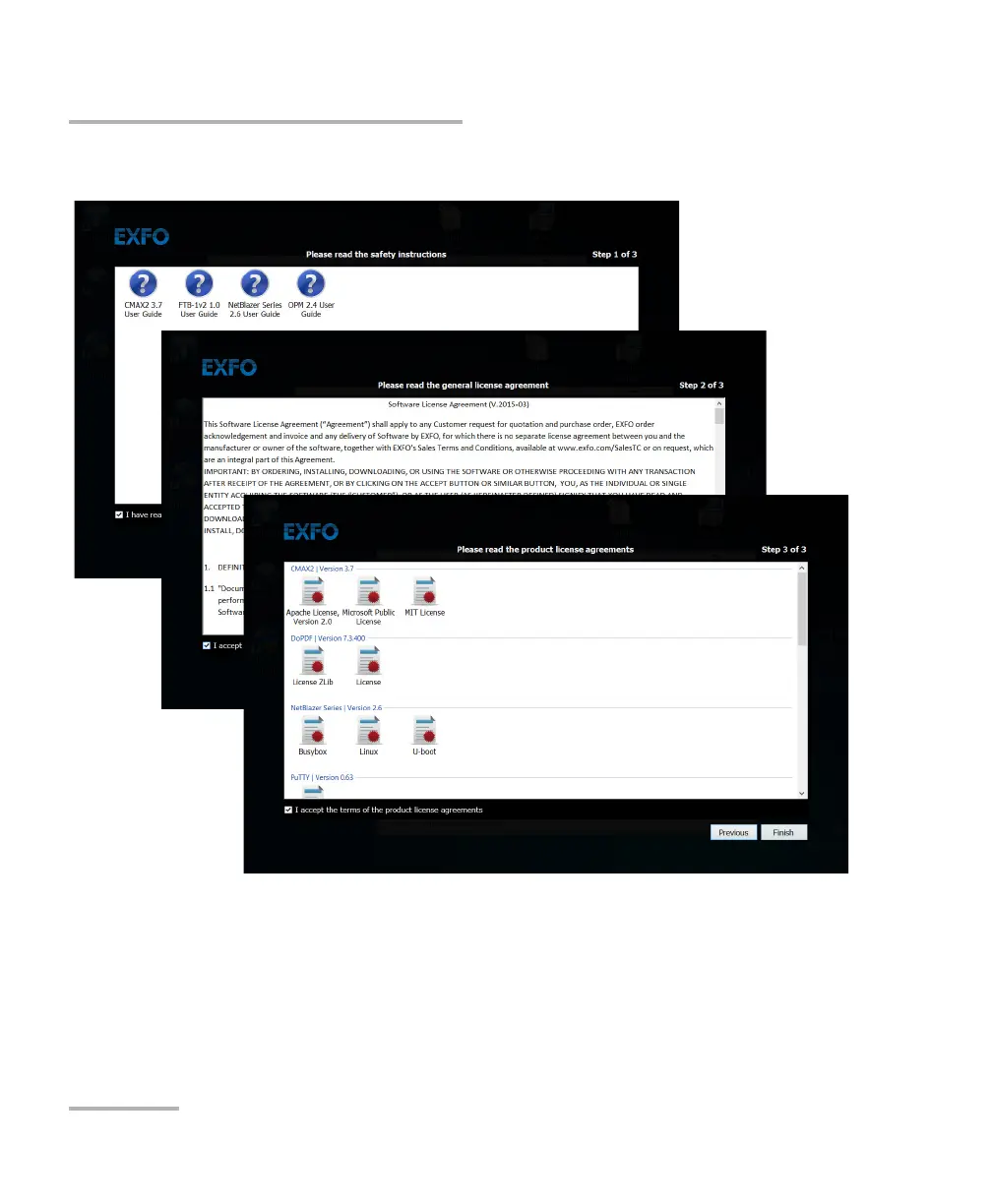

4. When the EXFO wizard is displayed, follow the on-screen instructions.

5. Tap Finish to close the wizard and start working.
