Getting Started with Your Unit

60 FTB-1v2 and FTB-1v2 Pro

Activating Software Options

To activate software options for your unit or module:

1. Connect a USB memory key to one of the USB ports of your computer.

2. Copy the key file to the USB memory key.

3. Disconnect the USB key from the computer and connect it to your unit.

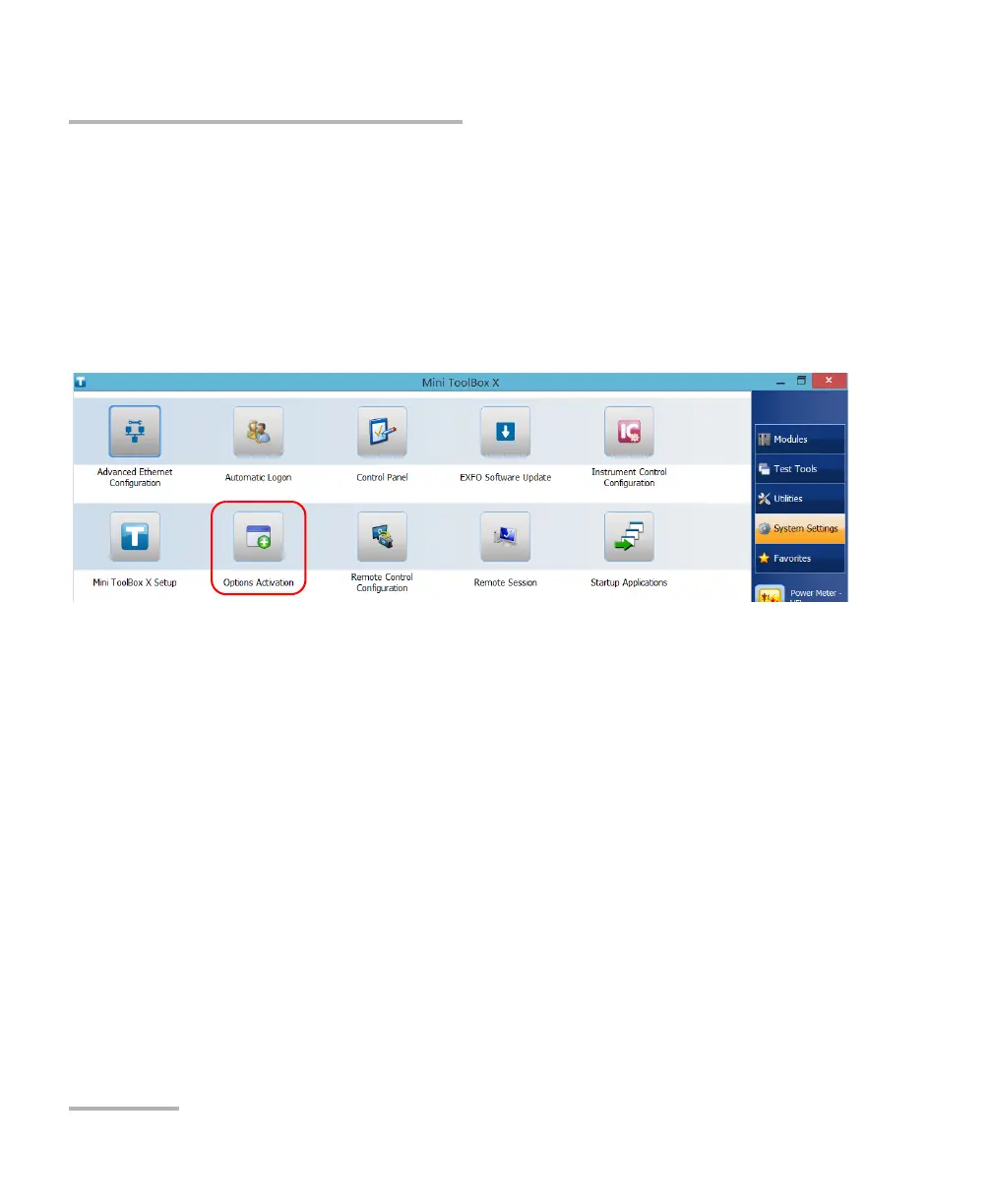

4. From the main window, tap the System Settings button, and then tap

Options Activation.
