Setting Up Your FTB-1v2 and FTB-1v2 Pro

FTB-1v2 and FTB-1v2 Pro 81

Customizing the Right-Click Feature

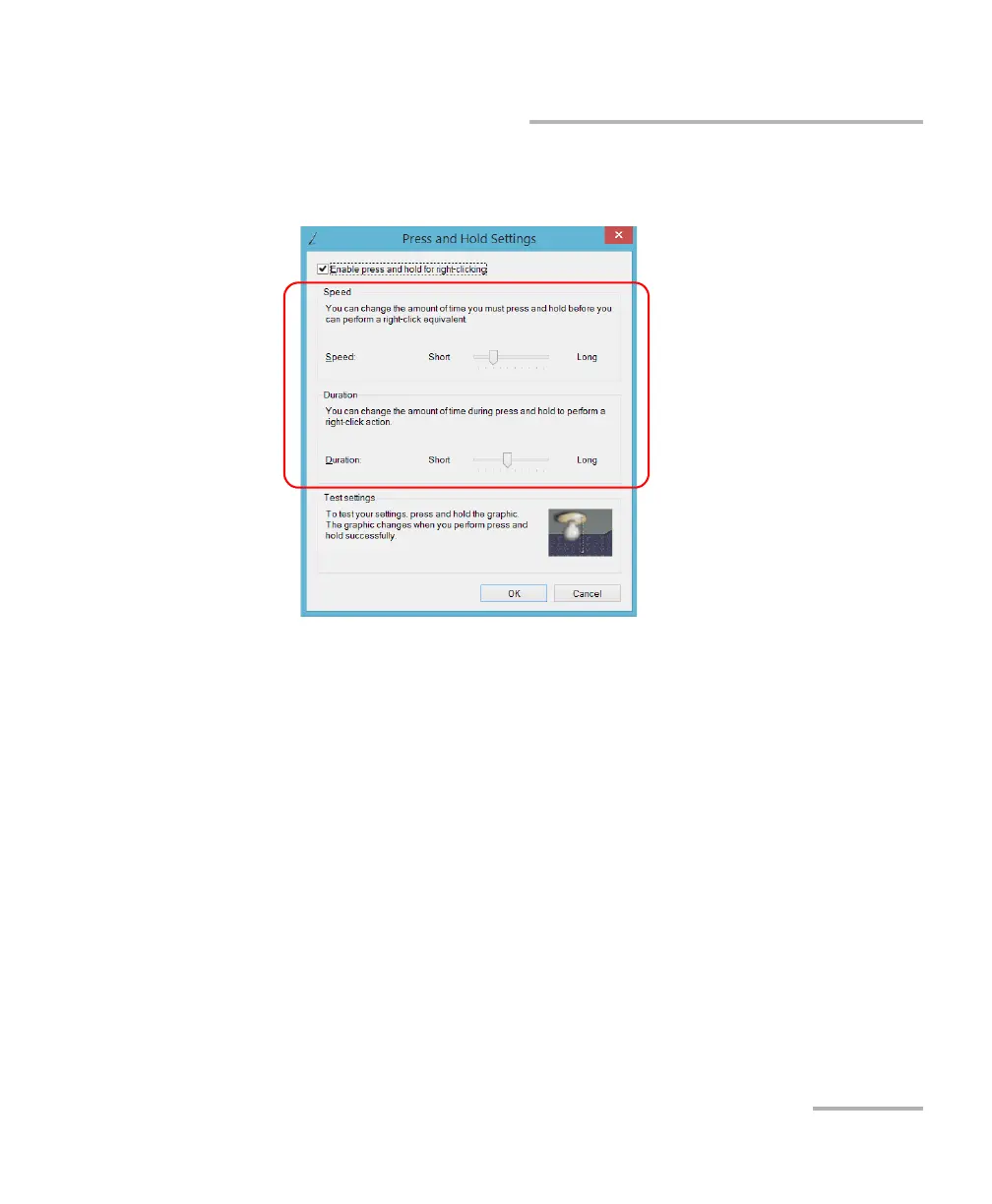

8. If you want to modify the response time of the right-click, move the

Speed or Duration sliders to adjust the configuration to your needs.

9. Tap OK to confirm your changes.
