Setting Up Your FTB-1v2 and FTB-1v2 Pro

FTB-1v2 and FTB-1v2 Pro 87

Selecting the Startup Applications

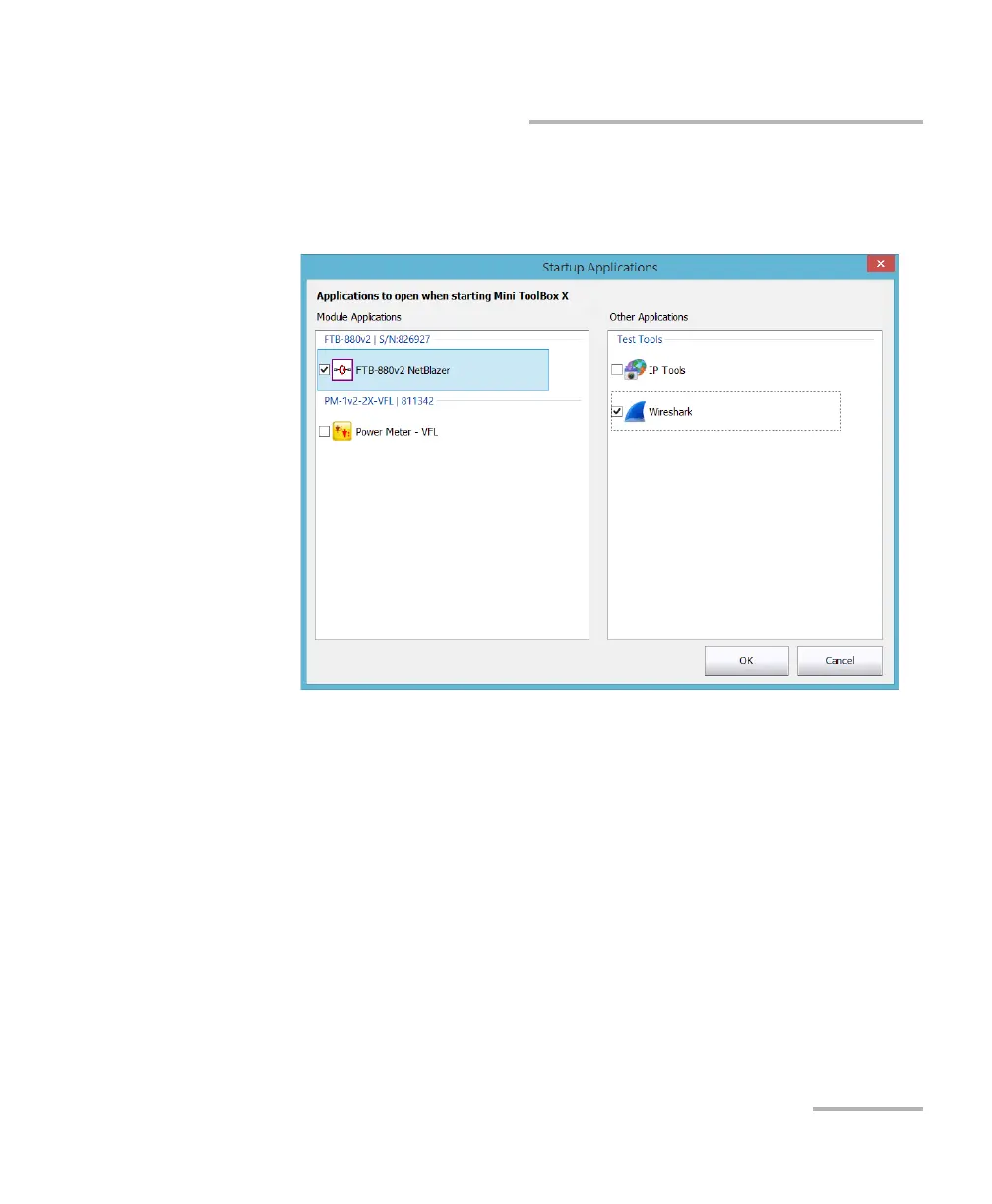

3. Under Module Applications or Other Applications, select the

applications you want to start automatically by selecting the

corresponding check boxes.

4. Tap OK to use the new settings. Tap Cancel to exit without using the

new settings.

Note: The new settings will be taken into account the next time Mini Toolbox X is

started.
