5420F models have 1 hot-swappable PSU and 1 xed PSU. 5420M models have 2 hot-
swappable PSUs. In a switch with a redundant power conguration, you can replace
one AC power supply without powering down the switch.
Caution
The 600 W, 920 W, 1200 W, and 2000 W AC power supplies that support PoE
cannot be installed and used in a switch that does not support PoE.
Note
The switch operating system prevents PoE power contribution from a power
supply that is not listed for use with that particular switch model.
You need the following tools and materials to replace a 600 W, 920 W, 1200 W, or 2000
W AC PoE power supply:
• Thermal protective gloves
• AC power cord, if you will not be re-using the cord from the removed power supply
To replace a 600 W, 920 W, 1200 W, or 2000 W AC PoE power supply, follow these steps:
1. Disconnect the AC power cord from the wall outlet and from the power supply.
2. Note the orientation of the installed power supply, and the location of the latching
tab at the right of the unit.
3. Push the latching tab toward the power supply handle and pull outward on the
handle to disengage the power supply internal connectors.
See Figure 47.

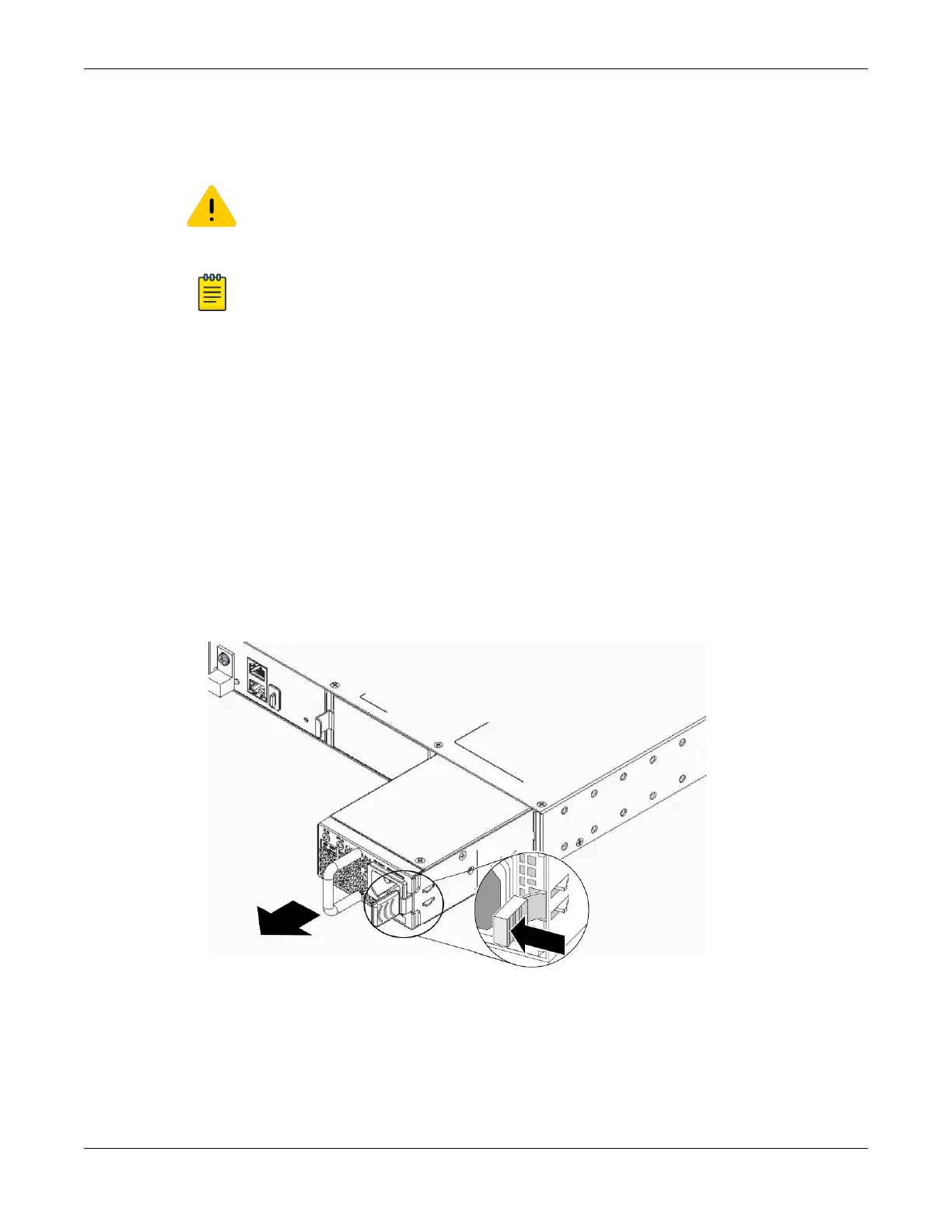

Figure 47: Removing a 600 W, 920 W, 1200 W, or 2000 W AC Power Supply
Replace Internal AC Power Supplies
Replacing a 600 W, 920 W, 1200 W, or 2000 W AC PoE
Power Supply
ExtremeSwitching 5420 Series Hardware Installation Guide 87
