Summit X480 Series Switches
Summit Family Switches Hardware Installation Guide
119
Summit X480-48t Switch
The front panel of the Summit X480-48t switch (Figure 99) includes:
● Forty-four fixed 10/100/1000BASE-T autosensing ports (ports 1–44) that provide 44 Gbps of
high-density copper connectivity
● Four combination ports (ports 45–48) using RJ-45 connectors or SFPs to provide 4 Gbps of copper or
fiber connectivity. The SFP ports support both 100BASE-X and 1000BASE-X optical modules.
For more information about combination ports, see “Combination Ports and Failover” on page 22.
For information about SFPs, see the Extreme Networks Pluggable Interface Modules Installation Guide.
● 10/100/1000 Mbps management port
● Serial console port used to connect a terminal and perform local management
● LEDs to indicate port status and switch operating conditions
For a description of the LEDs and their operation, see “Summit X480 Series Switch LEDs” on
page 120.
● Stack number indicator

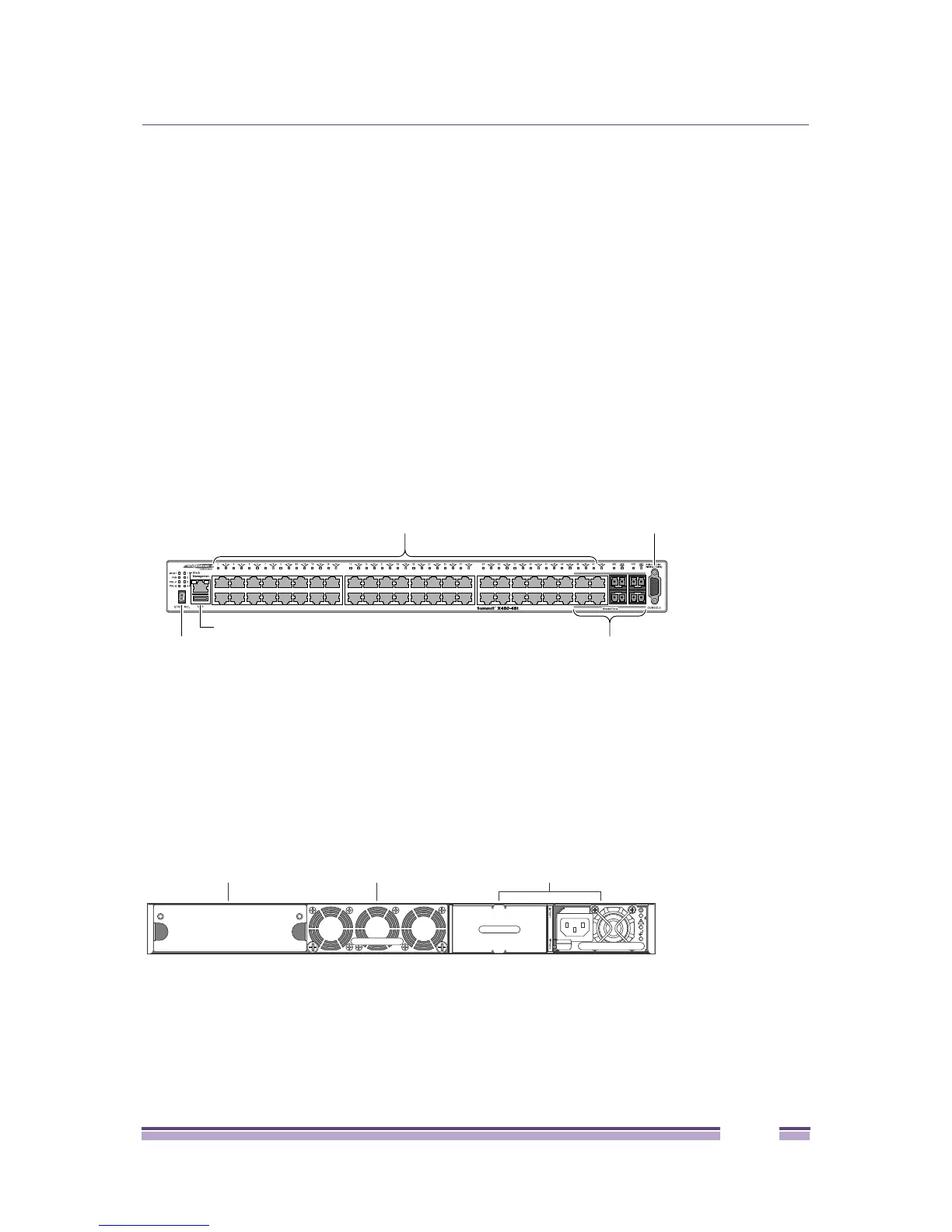

Figure 99: Summit X480-48t Switch Front Panel
The rear panel of the Summit X480-48t switch (Figure 100) includes:
● Slot for a VIM2 virtual interface module (see page 166
● Replaceable fan tray
● Two power supply bays for either AC or DC power supplies (See “Summit 450-Watt AC and DC
Power Supplies” on page 152.)
Figure 100: Summit X480-48t Rear Panel
Stack number
indicator
Combination ports
Management port
10/100/1000 Mbps ports
Console
port
SH_119
Slot for VIM2
versatile interface module
Fan tray
Two power supply
(PSU) slots
SH_154
