IN1608 xi Scaling Presentation Switcher • Internal Web Pages 92
Input and Output Configuration Page
Click the Input/Output Config icon on the Global Navigation Bar (see figure 54,
2
,
on the previous page) to open this page. It contains panels for input configuration and
output configuration.
Input Configuration panel
The Input Configuration panel consists of user configurable fields for each input. These
include Input (naming), Signal Type, Aspect Ratio, automatic Auto-Image, Auto
Memory, HDCP Authorized (status), and Film Detect.

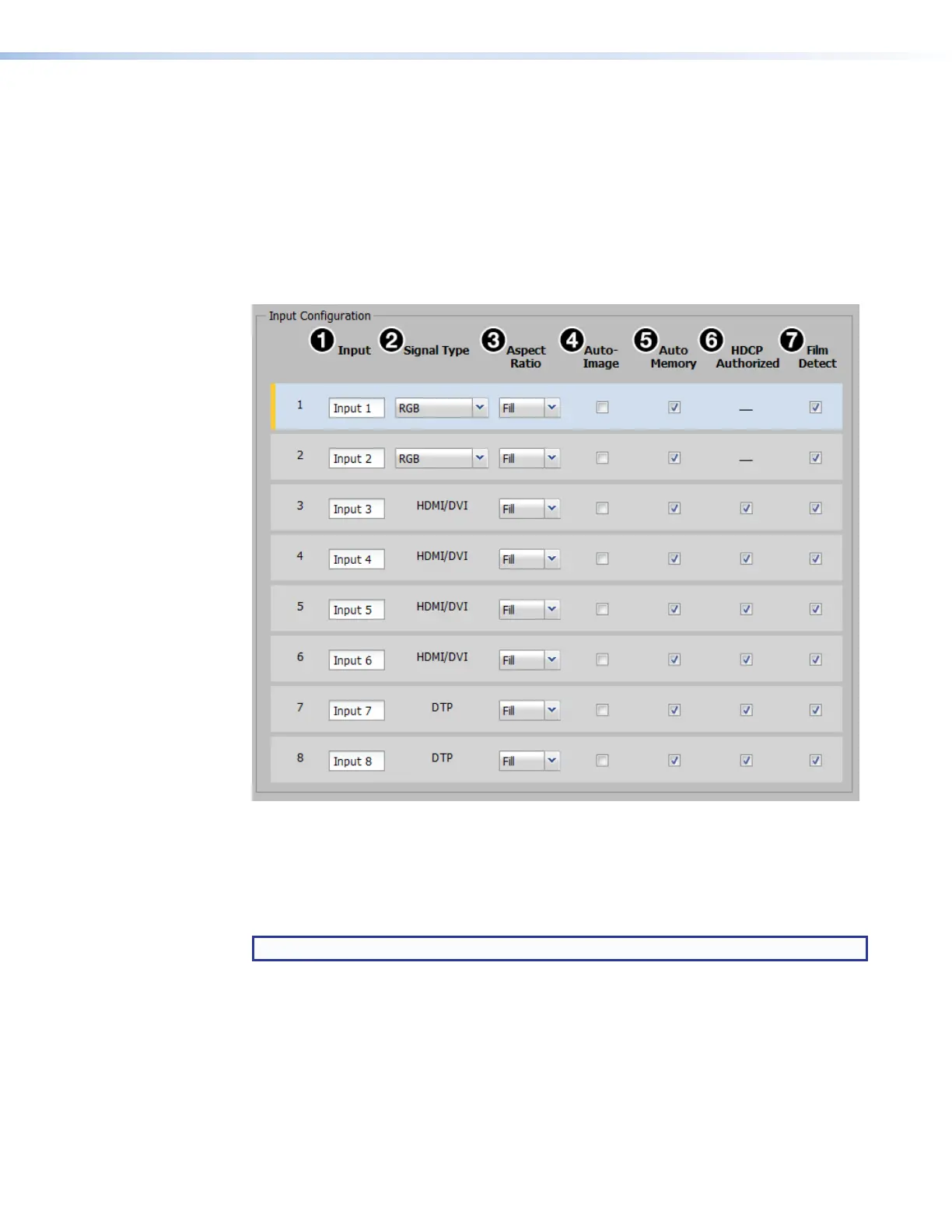

Figure 55. Input Configuration Panel
Input (renaming)
By default, the name associated with an input channel is Input <number>. To rename an
input, click inside the desired input field (see figure 55,
1
) and enter the desired name to
identify the input. Input names have a 16-character limit.
NOTE: Entering a single space character resets the name of the input to the default.
Signal type
From the Signal Type drop-down menu (
2
) select the signal type for inputs 1 and 2 from
RGB (default), YUV, RGBcvS, S-Video, and Composite. For all other inputs, HDMI/DVI is the
only available signal type.
