IN1608 xi Scaling Presentation Switcher • Operation 42
Device Info Submenu

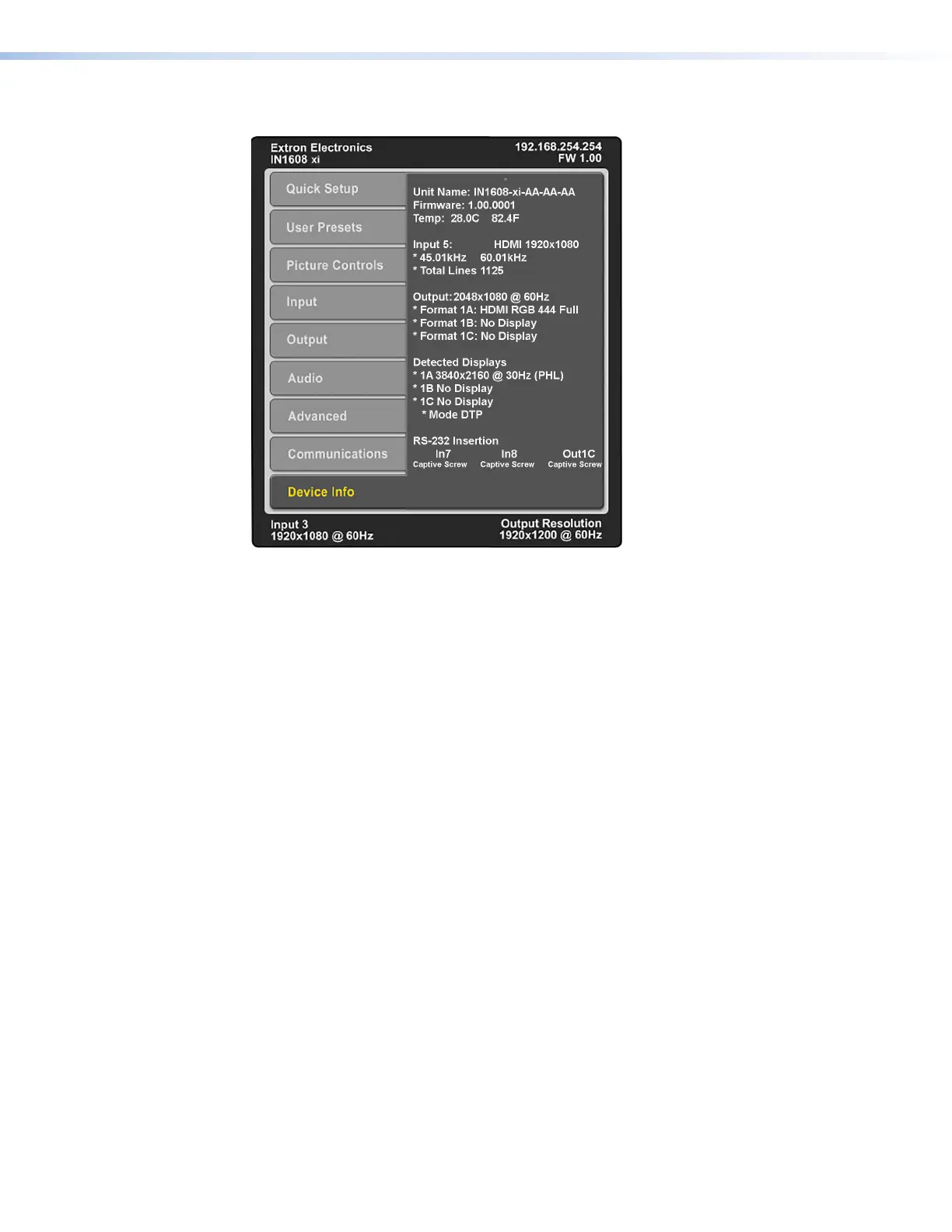

Figure 33. Device Info Submenu
The Device Info submenu displays device information including unit name, firmware
version, internal temperature, input and output signal information, detected display
information, and RS-232 Insertion status. This submenu does not contain any adjustable
submenu items.
Front Panel Lockout (Executive Modes)
The scalers have three modes of front panel security lock that limit the operation of the
device from the front panel.
• Mode 0 — Unlocks front panel functions. This is the default setting.
• Mode 1 — Locks all front panel functions. Pressing the Menu button in this mode
causes the message Executive Mode 1 Enabled to appear on the display. This mode
can be enabled or disabled by SIS commands (see the Front Panel Lockout mode
commands on page 69) and via PCS (see the IN1606 and IN1608 Series PCS Help file).
All functions performed via USB, RS-232, or Ethernet remain available).
• Mode 2 — Locks all front panel functions except input switching and volume control.
Pressing the Menu button in this mode causes the message Executive Mode 2
Enabled to appear on the display. All functions performed via USB, RS-232, or Ethernet
remain available.
To enable executive mode 2, press and hold the Menu and Enter buttons
simultaneously for 3 seconds. This mode can be enabled or disabled by SIS commands
(see the Front Panel Lockout mode commands) and via PCS (see the IN1606 and
IN1608 Series PCS Help file).
The menu system returns to the default menu within 10 seconds.
