IN1608 xi Scaling Presentation Switcher • Installation 12
Installation
This section contains information on how to connect cables to the IN1608 xi models. Topics
in this section include:
• IN1608 xi Connector Overview
• Installation Overview
• Rear Panel Connections
• Connection Details
IN1608 xi Connector Overview
All IN1608 xi models feature four HDMI, two DTP, and two universal analog video inputs,
along with stereo balanced or unbalanced audio connectors for each input. They also
features two mic/line audio inputs. Outputs include two HDMI outputs, two variable audio
outputs, and a TP output with corresponding RS-232 and IR Over DTP pass-through
connectors. Control connectors include a Remote RS-232 and LAN connector.
IN1608 xi (Standard Model)
The standard IN1608 xi model has all the connectors listed above.
100-240V ~ 1.0 A MAX
1
2
CONFIGURABLE
HDMI
HDMI
5
6
7
8
1C
RS-232IR
RS-232IR
Tx Rx Tx RxG
Tx Rx Tx RxG
Tx Rx Tx RxG
HDMI
1A
1B
3
4
INPUTS
OUTPUTS
Tx Rx
RS-232
G
LAN
RESET
AUDIO INPUTS OUTPUTSOUTPUTS
L1
R
L2
R
L3
R
L4
R
L5
R
+48V
+48V
12
LR
VARIABLE
IN1608 xi
1
2
MIC/LINE
L6
R
SIG LINK
DTP IN
SIG LINK
DTP IN
SIG LINK
DTP OUT
50/60 Hz
RS-232IR
REMOTE
OVER DTP OVER DTP
DTP
HDBT

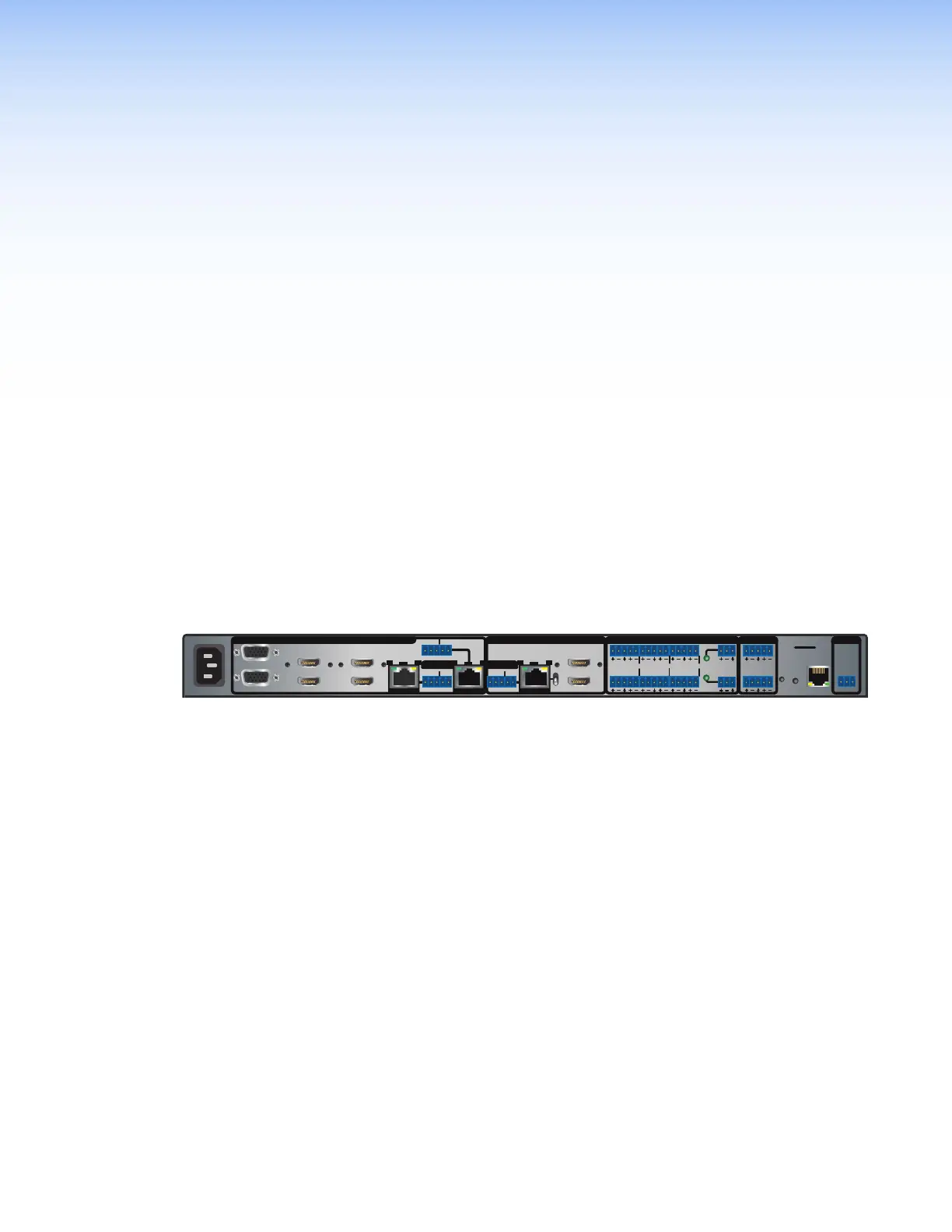

Figure 4. IN1608 xi Standard Model Rear Panel
