IN1608 xi Scaling Presentation Switcher • Operation 25
Operation
This section contains information on the front panel operation, on-screen display menu
system, and reset modes of the scalers. Topics in this section include:
• Front Panel Overview
• Powering Up
• Input Selection
• On-Screen Menu System
• Front Panel Lockout (Executive Modes)
• Reset Modes
Front Panel Overview
The scalers all have the same front panel features except for the IN1608 xi IPCP models,
which include a set of LED indicators for the IPCP Pro control processor (see figure 22,
G
).
VOLUME
SCALING PRESENTATION SWITCHER
IN1608 xi
INPUTS
1
HDCP
SIGNAL
OUTPUTS
ENTER
MENU
E
2 3 4 5 6 7 8 1A 1B 1C
CONFIG
1 2 3 4 5 6 7 8
INPUTS
A
B
CD
E
F
G
eBUS
OVER
LIMIT
S
Tx
Rx
RTS
12
1
3
1
4
2
3
1
4
2
CTS
23
COM
IR/S I/ORELAY S
A
Config port
B
Input selection buttons
C
Input and output LED indicators
D
Menu and Enter buttons
E
Navigation buttons
F
Volume knob and LED indicators
G
IPCP Pro 355 control processor LED
indicators (IN1608 xi IPCP models only)

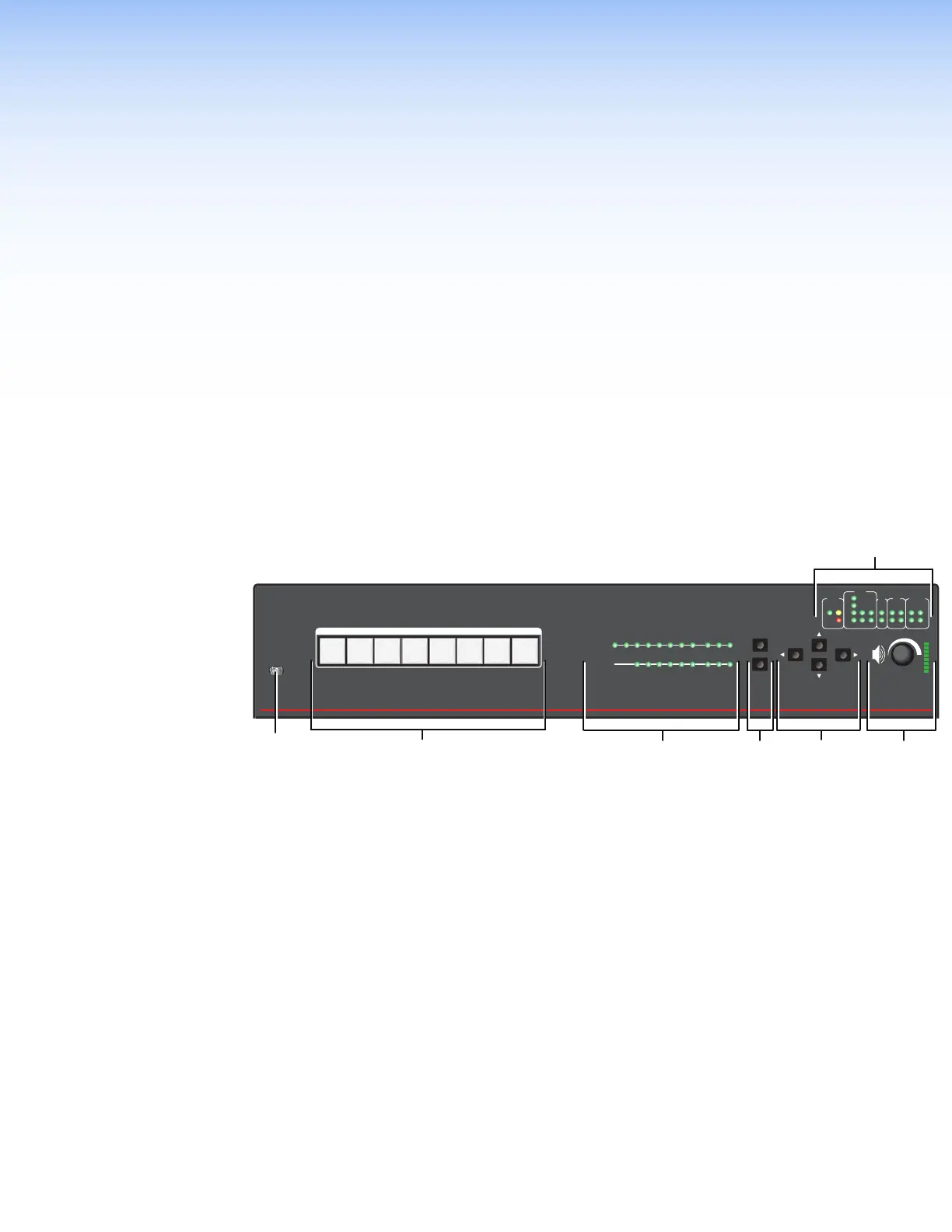

Figure 22. Front Panel Features (IN1608 xi IPCP SA Example)
A
Config port — Connect a host device to the USB mini-B connector.
B
Input selection buttons — Press one of these eight buttons to select an input. The buttons
light different colors for different types of inputs (see Input Selection on the next page for
button light definitions).
