IN1608 xi Scaling Presentation Switcher • Operation 29
Quick Setup Submenu

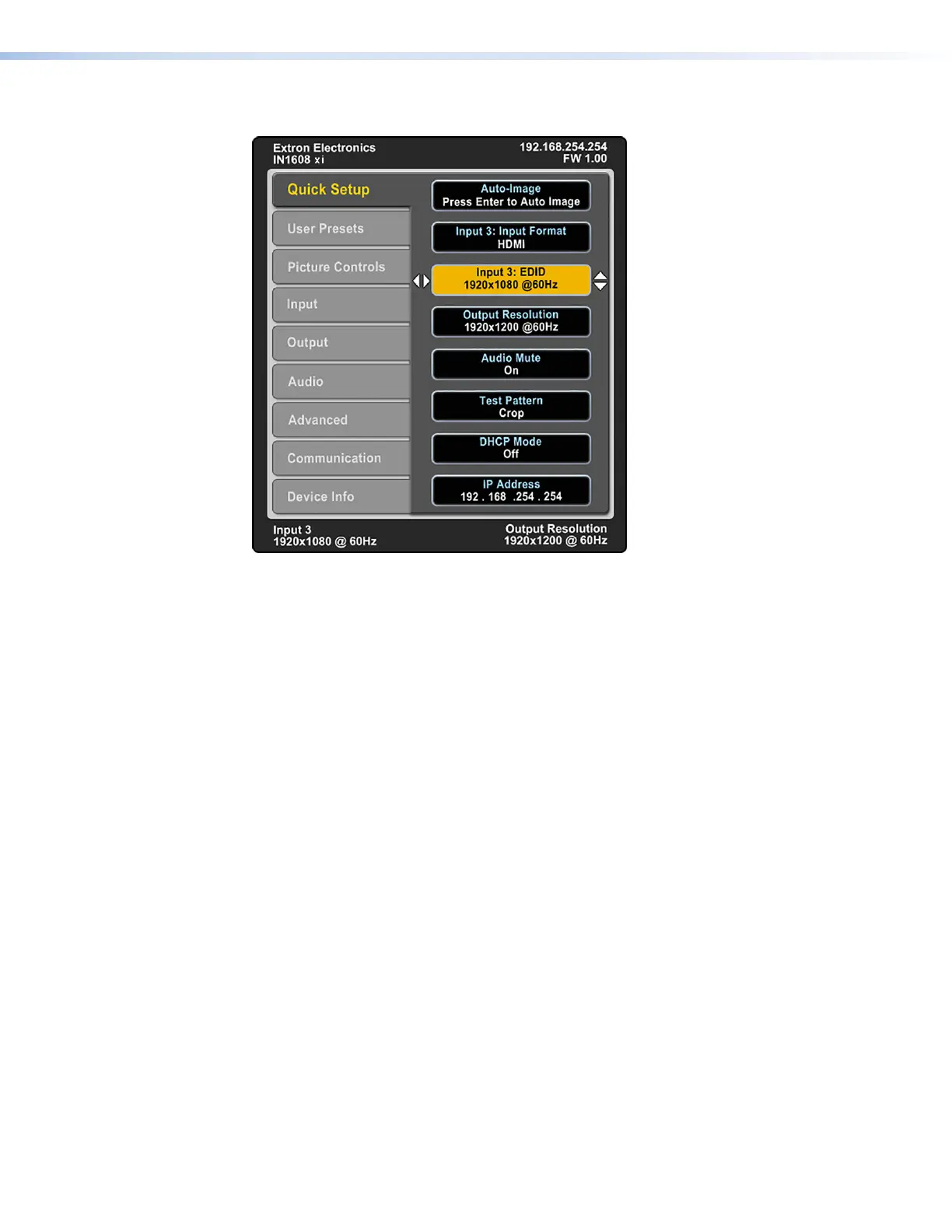

Figure 24. Quick Setup Submenu
The Quick Setup submenu provides quick access to common input, output, and
communication settings. This submenu contains the following items:
• Auto-Image — Press the Enter button to perform a one-time Auto-Image to size and
position the current input (see Auto-Image on page 32).
• Input Format — Press the navigation buttons to select the desired video input format
(see Input Format on page 33). The current input is displayed in the title of the
submenu.
• Input EDID — Press the navigation buttons to select a discrete EDID or match the
output resolution (see EDID on page 33). The current input is displayed in the title of the
submenu.
• Output Resolution — Press the navigation buttons to select from a list of output
resolutions and refresh rates (see Resolution on page 35). There are eight custom
options, prefaced by C1 through C8. The default setting is 720p @ 60 Hz.
• Audio Mute — Press the navigation buttons to globally mute or unmute the audio.
• Test Pattern — Press the navigation buttons to select an available test pattern to
display or to turn a test pattern off (see Test Pattern on page 39). The available test
patterns are Crop, Alternating Pixels, Color Bars, Grayscale, Blue Mode, and
Audio Test Pattern (pink noise). The default setting is Off.
• DHCP Mode — Press the navigation buttons to enable or disable DHCP mode.
• IP Address — Press the
and
buttons to change octets. Press the
>
and
<
buttons to change the value of a selected octet.
