IN1608 xi Scaling Presentation Switcher • Configuration Software 80
Device Discovery Panel
The Device Discovery panel displays accessible Extron devices connected directly to
the PC or to a LAN or WAN. Devices are identified and sorted by model, IP address, device
name, or connection method.

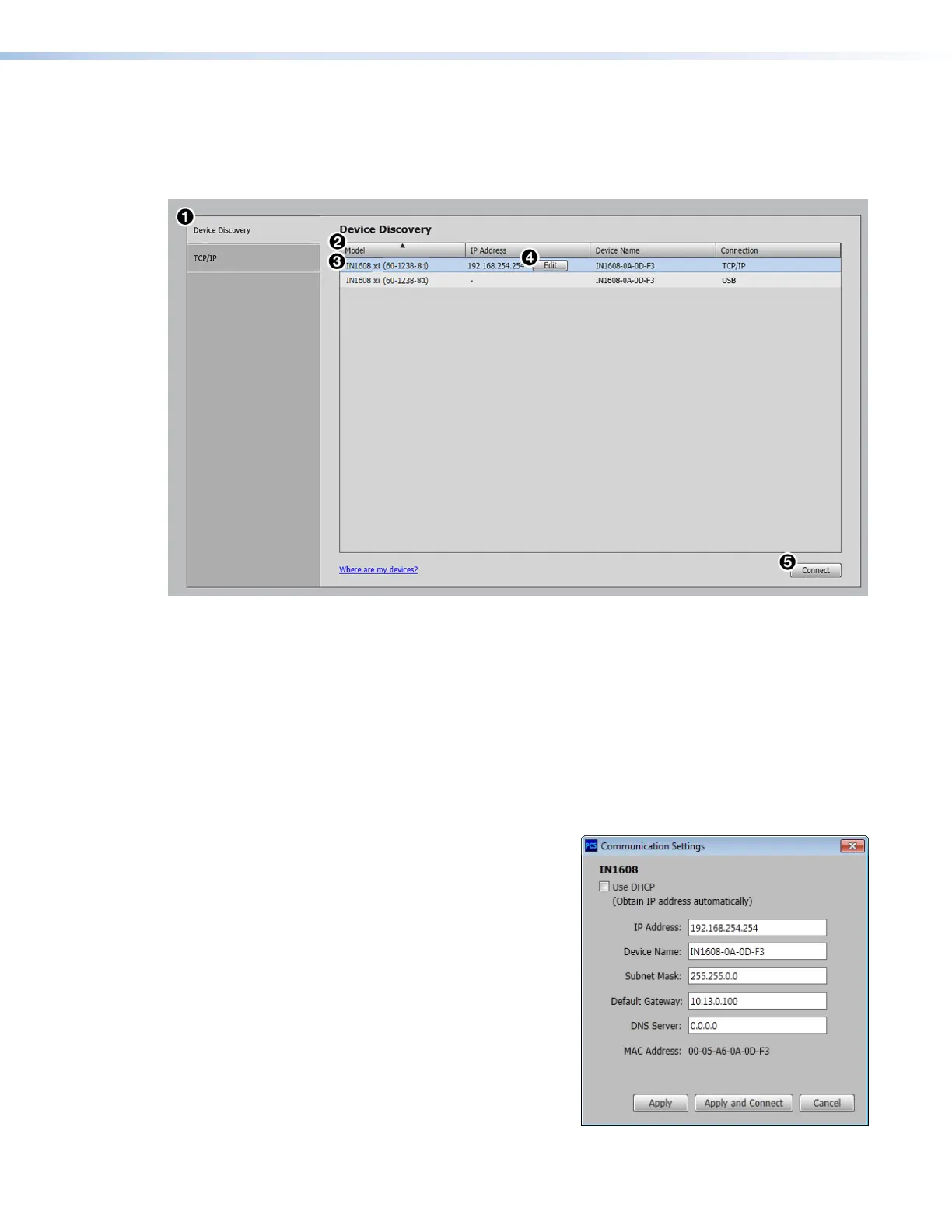

Figure 41. Device Discovery Panel
To sort the list of available devices:
1. Click the Device Discovery tab (see figure 41,
1
).
2. Click the desired column heading (
2
) to sort it in ascending or descending order.
To connect to a device:
1. Click the Device Discovery tab (
1
).
2. Select the desired device (
3
).
3. Click the Connect button (
5
). A new device configuration tab opens.
To edit communication settings from the Device Discovery panel:
1. Click the Device Discovery tab (
1
).
2. Click the Edit button of the desired device
(
4
). The Communication Settings dialog
box opens.
See Ethernet settings on page 126 for
configuration details.
