IN1608 xi Scaling Presentation Switcher • Internal Web Pages 91
Video and Audio Mute and Freeze Buttons
• Click the Video Mute button (see figure 52,
4
, on page 89) to mute only the video
signal. The button turns red.
• Click the Audio Mute button (
5
) to globally mute only the audio. The button turns red.
• Click the AV Mute button (
6
) to mute both video and audio simultaneously. The button
turns red, along with the Video Mute and Audio Mute buttons.
• Click the Freeze button (
7
) to freeze the current video frame. The button turns blue.
To unmute or unfreeze any signal, click the appropriate button. The button reverts to the
default color, indicating the signal has been unmuted or unfrozen.
NOTE: Changing inputs unfreezes a signal as well.
Input and Output Information

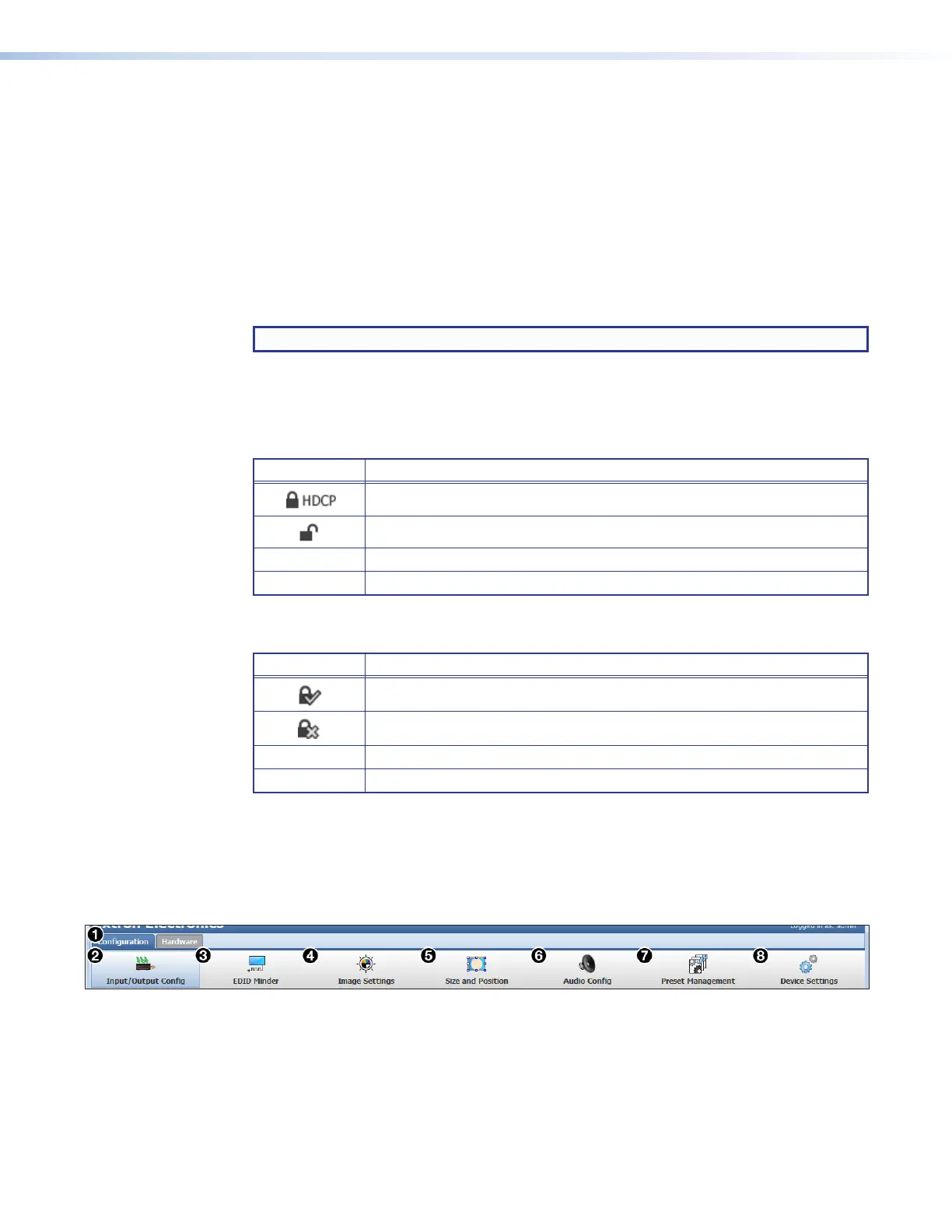

If available, the Active Input panel displays the resolution and refresh rate of the active
input signal as well as the HDCP status.
Symbol Definition
The signal is HDCP encrypted.
The signal is not encrypted.
-
Unable to determine the HDCP status.
No Signal There is no signal detected.
If available, the Outputs panel displays the resolution and refresh rate of the output as well
as the HDCP status of all connected outputs.
Symbol Definition
The display is HDCP compliant.
The display is not HDCP compliant.
-
Unable to determine the HDCP status.
No Display There is no display detected.
Configuration Pages
The configuration pages contain options for input and output configuration, EDID
management, image settings, image size and position, audio configuration, preset
management, and device settings.
Figure 54. Global Navigation Bar - Configuration
