IN1608 xi Scaling Presentation Switcher • Operation 28
Using the On-screen Menu

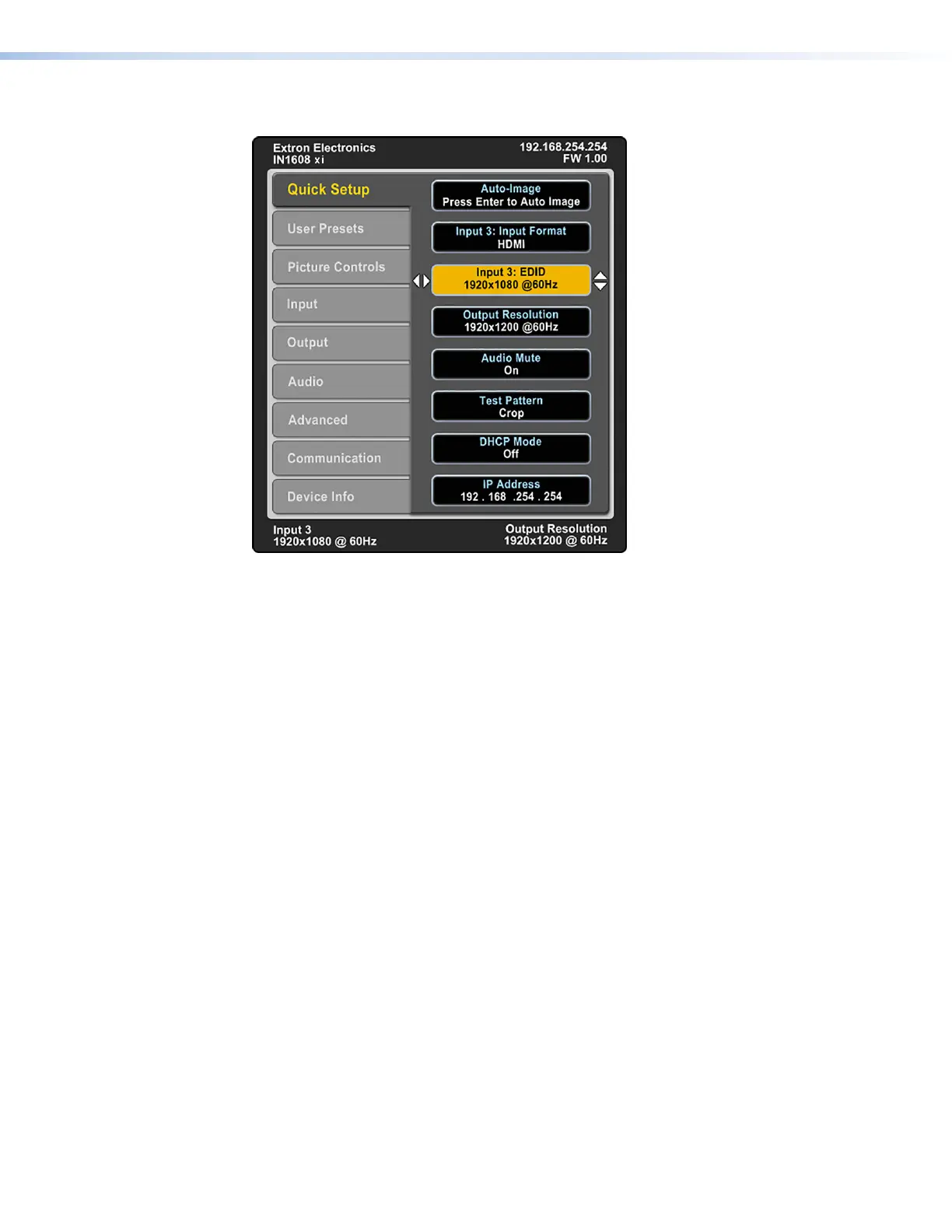

Figure 23. On-screen Menu Example
To open the on-screen menu:
1. Connect a display device to an HDMI output connector (see figure 11,
B
on page 17).
2. Press the Menu or Enter button to open the on-screen menu.
To navigate the on-screen menu:
1. Press the
>
and
<
buttons to navigate the nine submenus. The table on the previous
page shows the nine submenus and their submenu items.
2. Press the Enter or button to access the submenu items of the selected submenu.
3. Press the
>
and
<
buttons to navigate the available submenu items.
4. Press the Menu button to return to the list of submenus.
To adjust a submenu item:
1. Navigate to an adjustable submenu item and press the Enter or button to select the
submenu item.
2. Press the and buttons to adjust the setting or select a specific adjustable setting
within the selected submenu item.
If the selected submenu item has multiple adjustable settings, press the
>
and
<
buttons to select a value.
3. Press the Enter button to accept the new value.
Press the Menu button to cancel any pending changes.
To exit the on-screen menu:
From the list of submenus, hold the Menu button for 3 seconds to exit the on-screen menu,
or wait for the menu to time out (approximately 1 minute).
