• Insertion Port — This column lists the insertion port numbers. The insertion port
number must be stated from a specific starting point. This number is automatically
entered as the Telnet port number when you establish communication with the insertion
port. All insertion ports for the DTP inputs and output are numbered sequentially,
starting with the number in the text field for input 7.
To change the insertion port numbers:
In the Insertion Port field for input 7, enter the first port number. Input 8 and the DTP
output are assigned subsequent port numbers.
• Baud Rate, Data Bits, Stop Bits, and Parity — These four columns contain
drop-down menus from which to select the port parameters of the inputs and output.
These menus are available only if Ethernet was selected as the insertion method.
Hardware Pages
The Hardware pages contain unit information and options for device naming,
communication settings, updating firmware, executive and power modes, date and time
settings, passwords, and reset modes. Click the Hardware tab (see figure 81,
1
) to open
these pages.

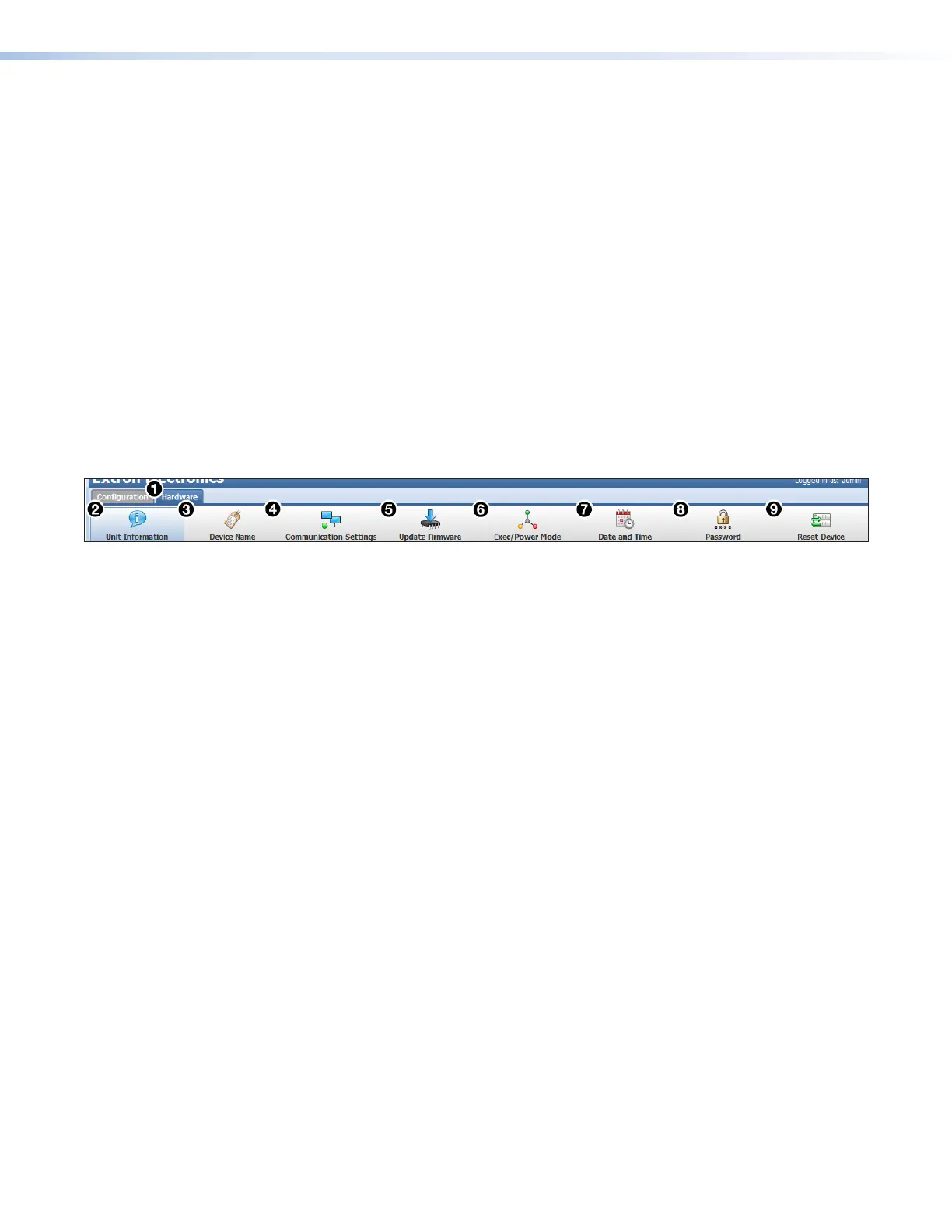

Figure 81. Hardware Global Navigation Bar
Unit Information Page
The Unit Information page gives a non-configurable view of information about the
connected device. Click the Unit Information icon (
2
) on the Hardware Global
Navigation Bar to open the page.
The following information is displayed:
• Part number
• Model name
• Model description
• Firmware version
• Temperature
• Default web version
• Device name
• DHCP status
• IP address
• Subnet mask
• Default gateway address
• MAC address
• DNS server
Click the License Information button to view details about third-party packages and
associated licensing.
