IN1608 xi Scaling Presentation Switcher • Installation 21
Analog Audio Connection
Wire the audio input and output connectors as shown in figure 16. Use the supplied tie
wrap to strap the audio cable to the extended tail of the connector. This does not apply to
the amplified audio output connector on the SA and MA models.
Balanced Audio Output
Tip
Ring
Tip
Ring
ves
Unbalanced Audio Output
Tip
No Ground Here
Tip
Sleeves
LR
LR
Unbalanced Audio InputBalanced Audio Input
Tip
Ring
Tip
Ring
ves
Tip
Sleeve
Sleeve
Tip
LR
LR

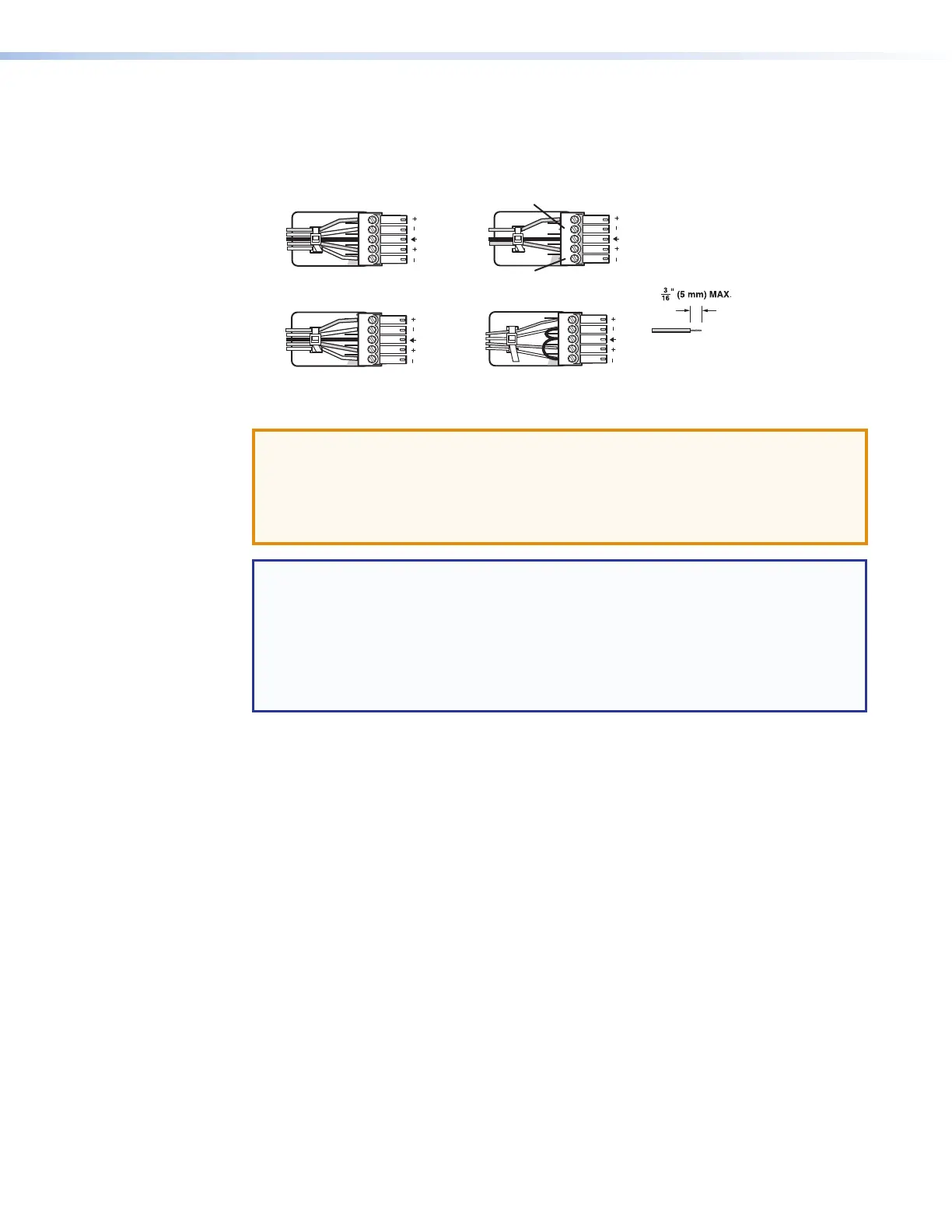

Figure 16. Analog Audio Wiring Configuration
ATTENTION:
• For unbalanced audio, connect the sleeves to the ground contact. Do not connect
them to negative (–) contacts.
• Pour l’audio asymétrique, connectez les manchons au contact au sol. Ne PAS
connecter les manchons aux contacts négatifs (–).
NOTES:
• The length of the exposed wires in the stripping process is important. The ideal
length is 3/16 inch (5 mm). If the exposed portion is longer, the wires may touch,
causing a short circuit between them. If the exposed wires are shorter, they can be
easily pulled out, even if tightly fastened by the captive screws.
• Do not tin the wires. Tinned wire does not hold its shape and can become loose
over time.
