IN1608 xi Scaling Presentation Switcher • Operation 46
RS-232 protocol
You also may need to set the RS-232 protocol of the addressed port to match the connected
device. You can do this using any of the following methods:
• Using the Product Configuration Software (see the IN1606 and IN1608 Series PCS Help
file).
• Using SIS commands (see the Configure Serial Port SIS commands on page 75).
• Using the internal web page (see Baud Rate, Data Bits, Stop Bits, and Parity on
page 124.
Captive Screw Signal Insertion

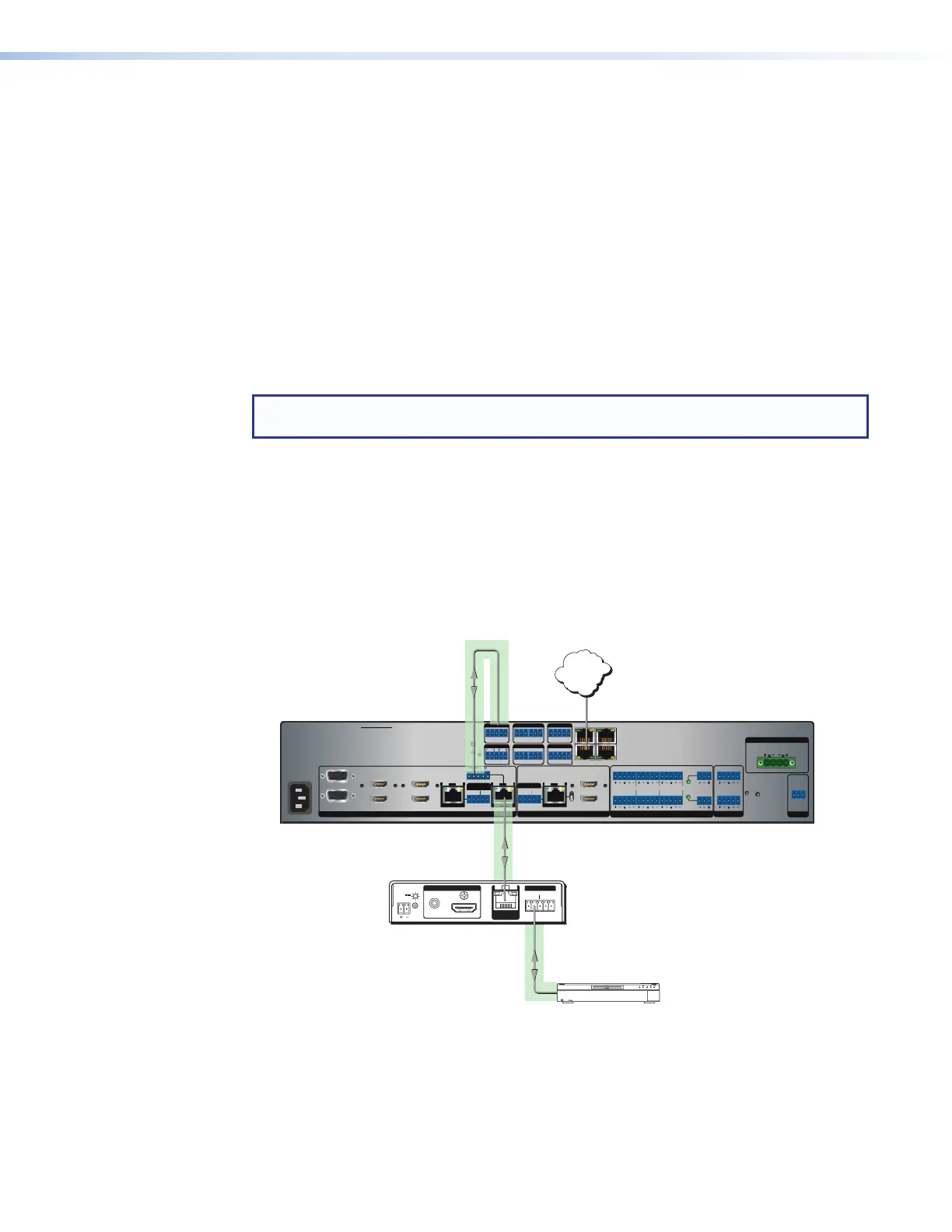

Figure 35 is an example of a typical captive screw insertion, in which an Extron IPCP module
provides control of a Blu-Ray player via the scaler. Configure this type of insertion as follows:
NOTE: Each captive screw insert is for the associated input or output only and cannot
be tied to any other input or output.
1. Connect an RS-232 cable from the IPCP module to the RS-232 captive screw port
(input port 8 in this example).
2. If necessary, enable the port for captive screw (see Enabling Ethernet and Captive
Screw Insertion, on page 44).
The RS-232 control signal is inserted directly onto the TP port of the same number and
cannot be tied to any other port.
3. Connect the TP cable to the endpoint as usual.
4. Connect a serial cable from the endpoint to the device to be controlled.
