Output Configuration panel
The Output Configuration panel contains controls for output resolution and rate, format
settings, switch transitions, and available test pattern selection.

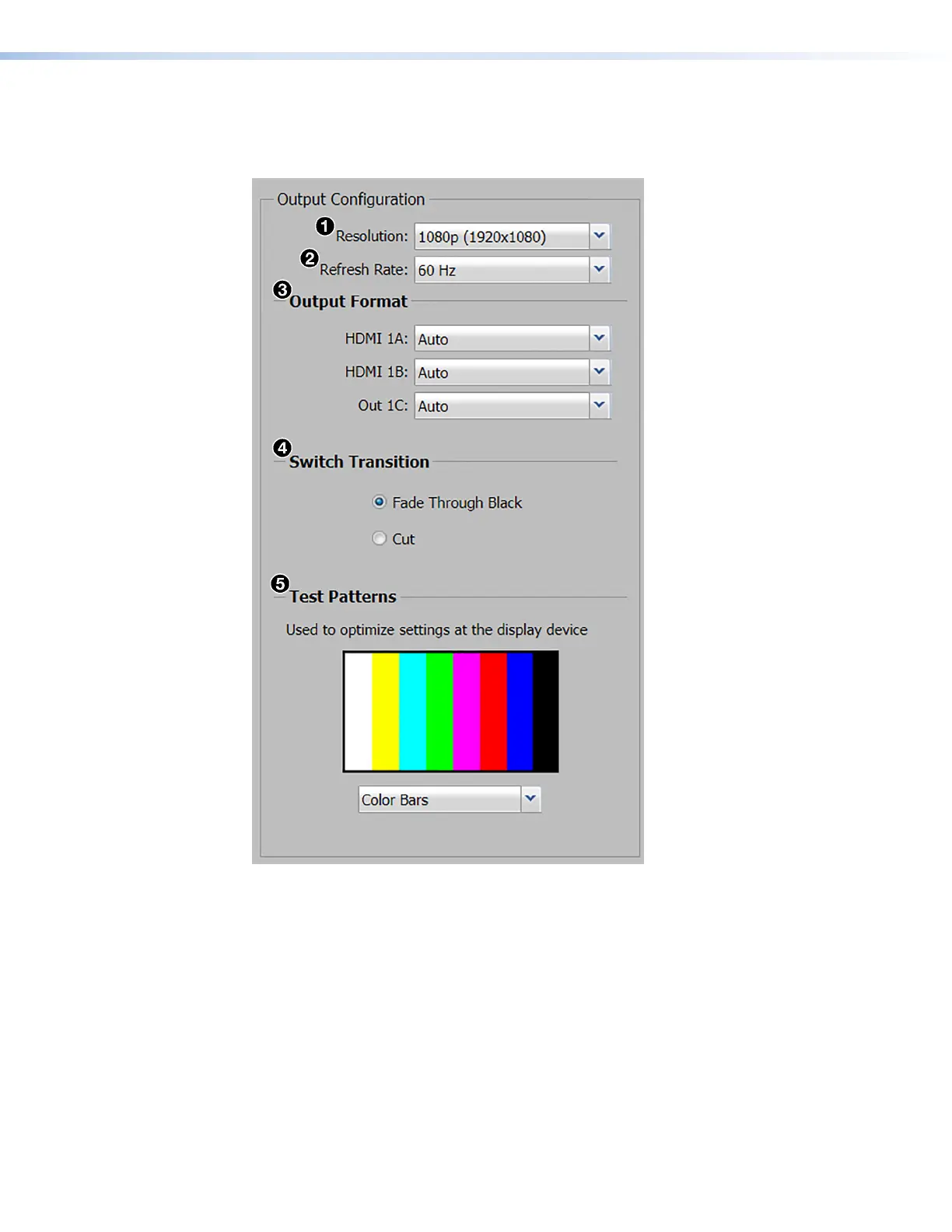

Figure 56. Output Configuration
Resolution
From the Resolution drop-down menu (see figure 56,
1
), select the applicable output
resolution.
Refresh rate
From the Refresh Rate drop-down menu (
2
), select the applicable output refresh rate.
Output formats
From the HDMI 1A, HDMI 1B, or Out 1C drop-down menu (
3
), select the applicable digital
signal format.
