A Technical appendix
68 Festo – GDCP-CMMP-M0-HW-EN – 1511c – English
PFC output power (kW)
0,25
CMMP-AS-C2-3A-... CMMP-AS-C5-3A-...
Mains voltage (Veff )
PFC power
(peak power)
0,5
0,5
1
12
PFC power limited by
I²t (50%)
110
200
255

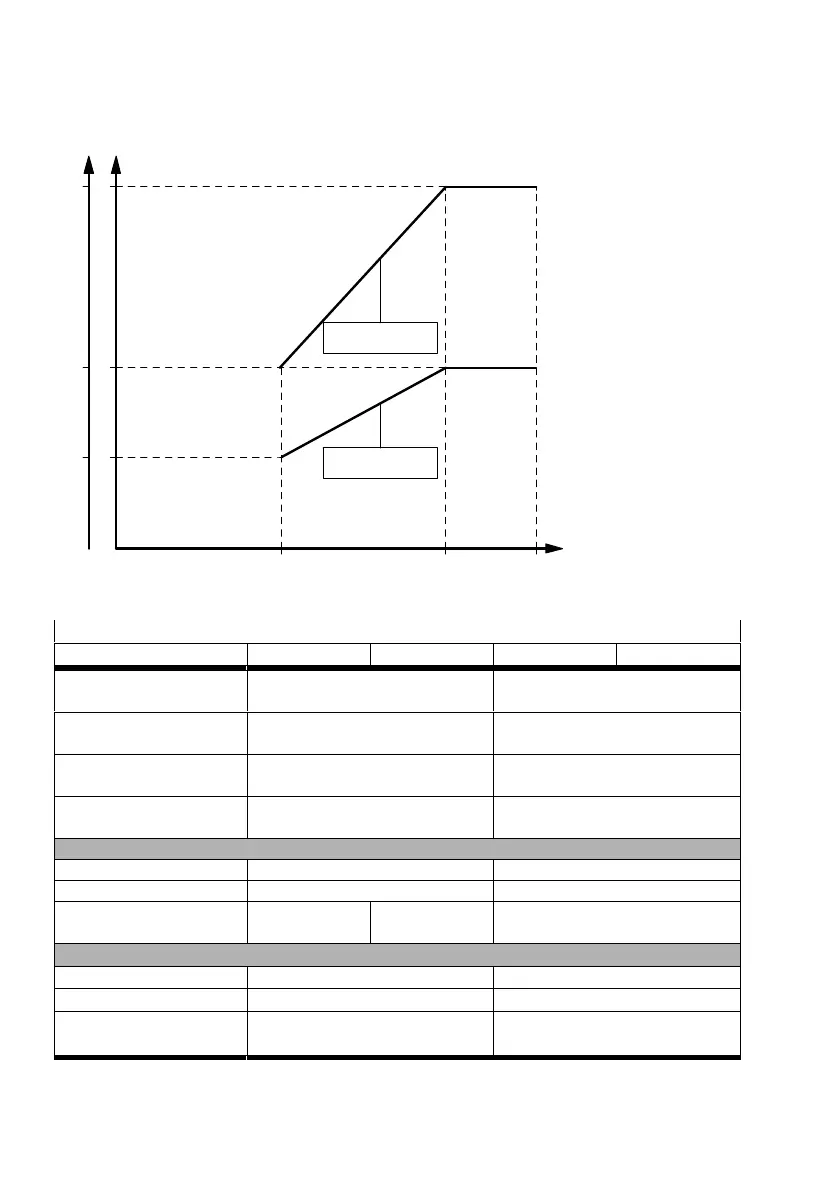

Fig. A.1 Performance characteristics curve of the PFC level
Technical data for brake resistance
CMMP-AS- C2-3A-M0 C5-3A-M0 C5-11A-P3-M0 C10-11A-P3-M0
Trigger level
(without PFC)
[V DC] 389 760
Trigger level
(with PFC)
[V DC] 440 –
Max. voltage
(without PFC)
[V DC] 400 800
Max. voltage
(with PFC)
[V DC] 460 –
Braking resistor, integrated
Resistance value [Ω] 60 68
Pulse power [kW] 2.8 8.5
Continuous
output
[W] 10 20 110
Braking resistor, external
Resistance value [Ω]  50  40
Operating voltage [V]  460  800
Continuous
output
[W]  2500  5000
Tab. A.6 Technical data for brake resistance
