2. Commissioning
2-8
Festo Festo P .BE CP FB13-E-EN en 9910c
76543210
Bit
Bit
Long data
00 = 1 byte/word
...
15 = 16 bytes/word
Input/output
00 = Specific identifier formats*
)
01 = Entry
10 = Output
11 = Entry/output
Length
0=Byte
1=Word
Consistency
0=Byteorword
1 = Complete length
*) not suppor ted

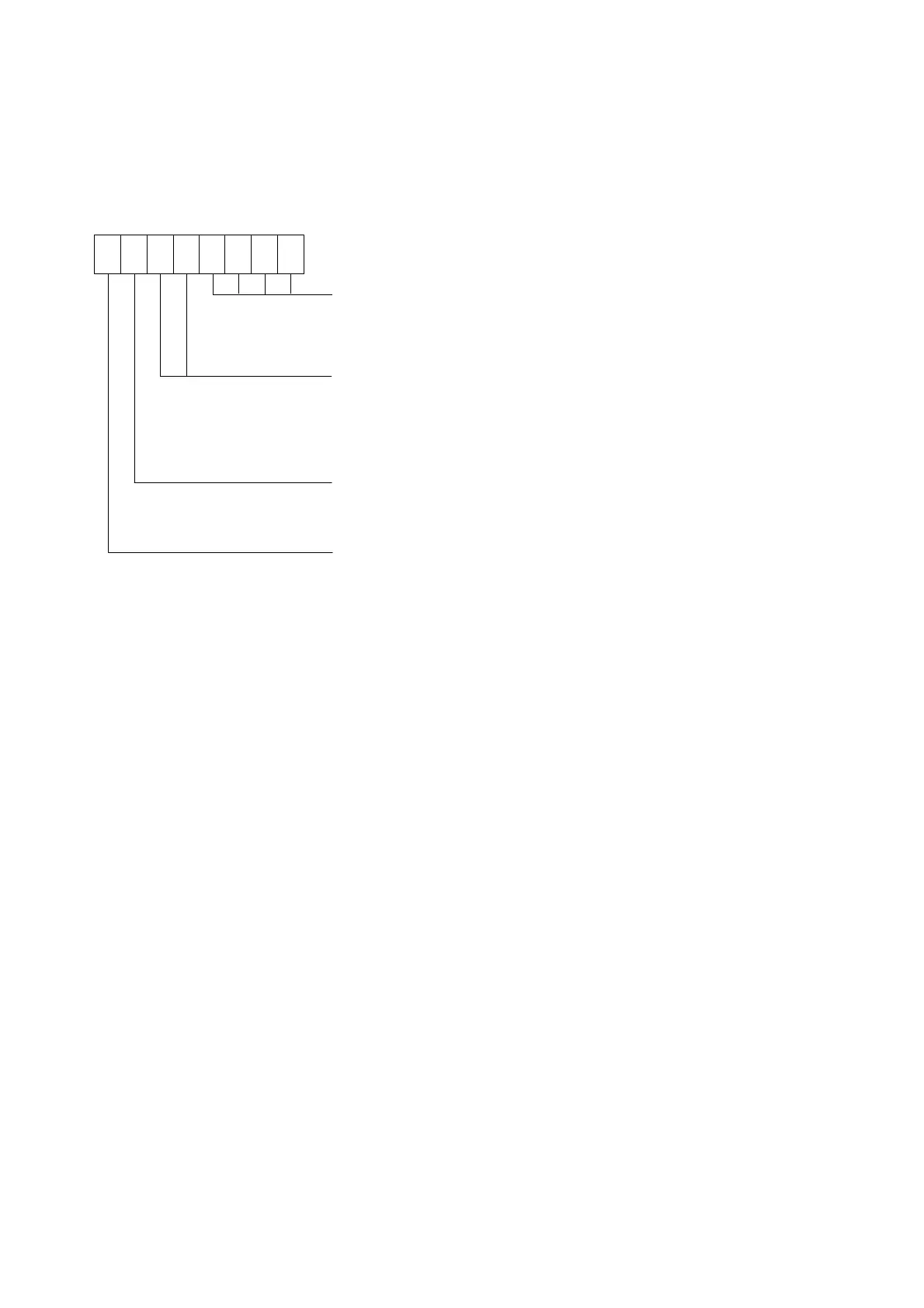

Fig. 2/2: Structure of the identifier bytes
Example:
00010000
b
= 016
d
(010
h
): 8DE = 8 digital inputs
