2. Commissioning
2-29
Festo Festo P .BE CP FB13-E-EN en 9910c
12

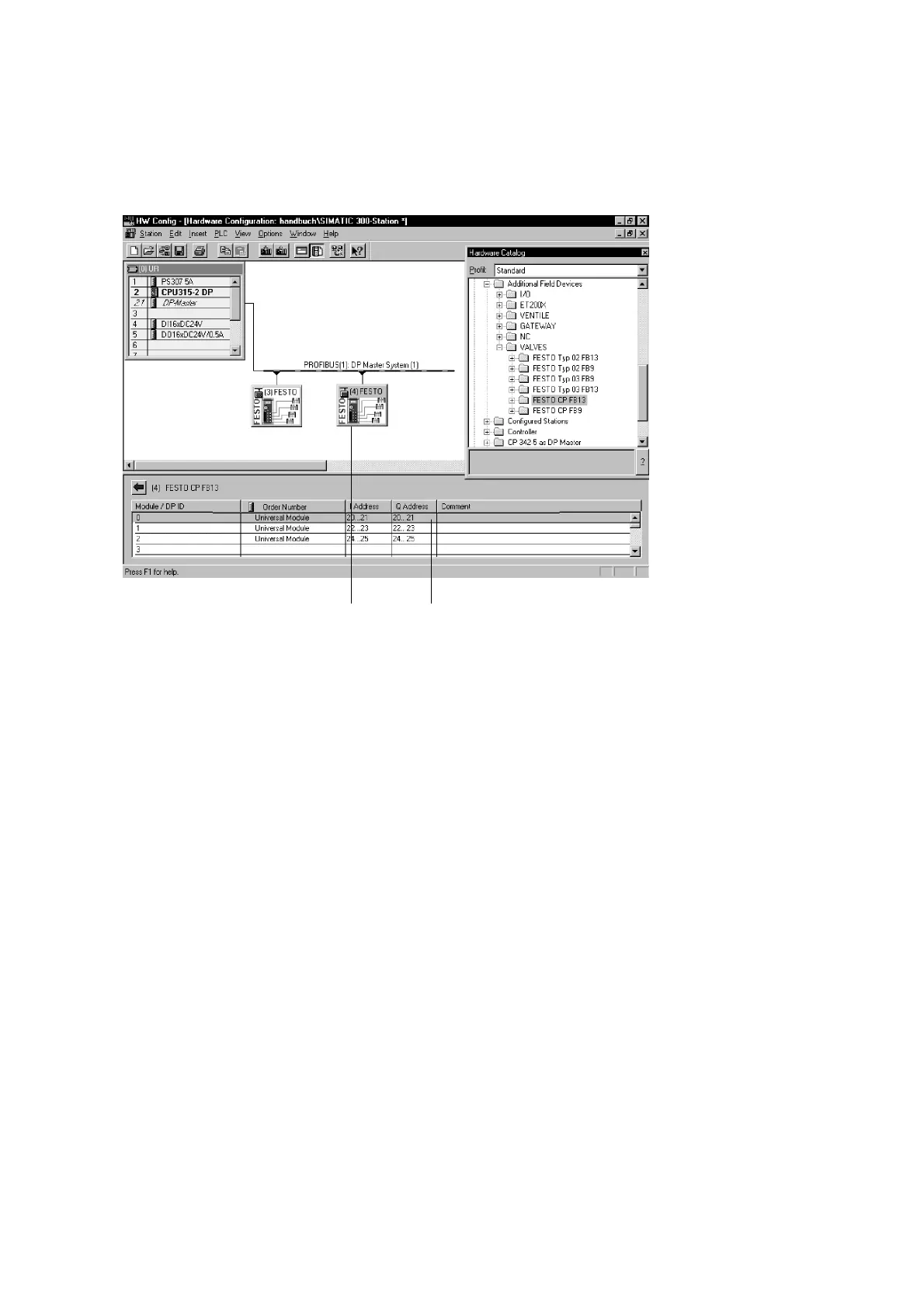

Fig. 2/16: Configuration with STEP7 Hardware catalogue
Addressing Mark the symbol of the valve terminal to be configured in
Hardware Config 1.
The configur ation data with the columns “DP ID”, “Order
number ”, “I address ”, “O address ”, “Comment ” 2 ap-
pear in the table in the lower half of the screen.
