The CP valve terminals are available with the following
electrical connections:
Valve terminal
variants
IC connection CP connection
MP connection AS-i connection

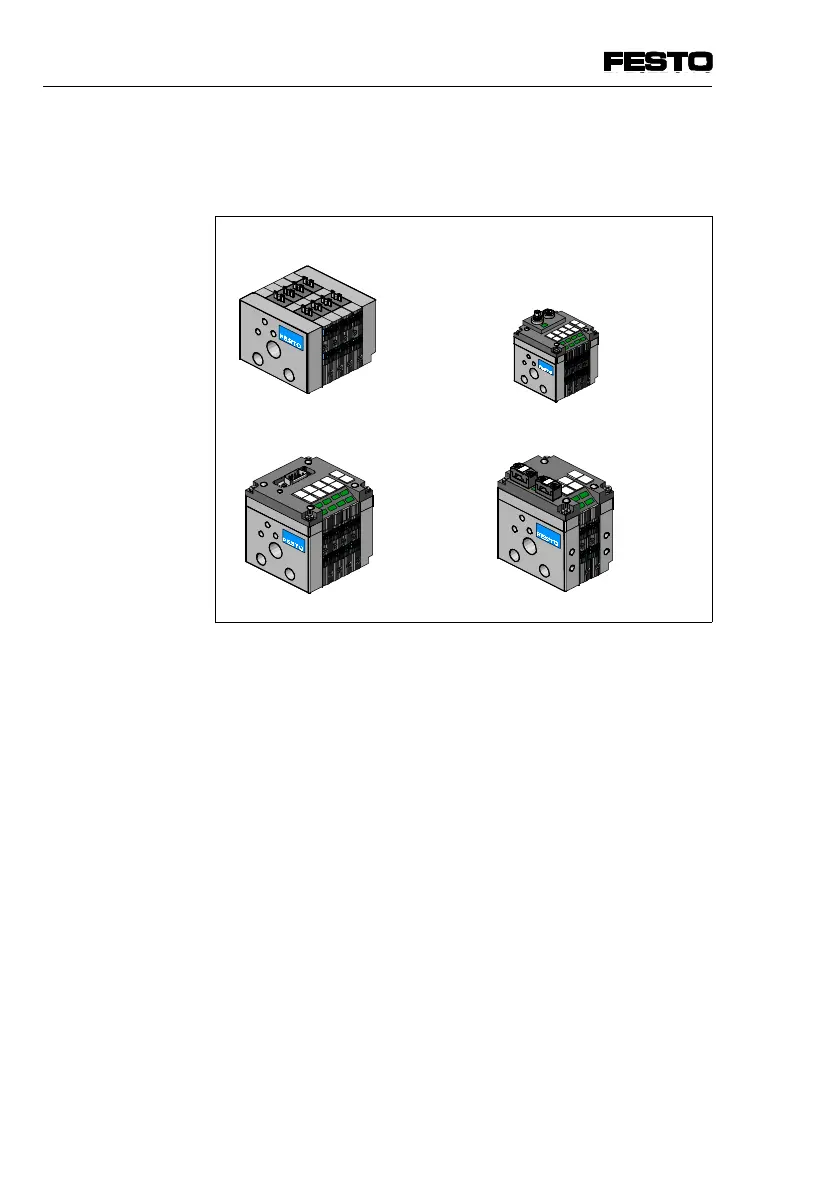

Fig. 1/1: Variants of the CP valve terminal
The CP terminal with single connection is available with
2 to 8 valve plates (also in uneven spacing). The
electrical connection on this type of terminal is made
separately by means of a socket on each solenoid coil.
CP terminal
with
IC connection
This CP terminal is available with 4, 6 or 8 valve loca-
tions. The electrical connection of the solenoid coils is
made centrally via the multiple connector plate.
CP terminal
with
MP connection
The CP terminal with CP connector is available with 4,
6 and 8 valve plates. Connection to the higher-order
fieldbus node is made by means of a special CP cable.
CP terminal
with
CP connection
1. System overview
1-4 CPV... 9802
