The supply and work tubing can be connected centrally
to CP terminals with the pneumatic multiple connector
plate. The CP terminals can be separated quickly from
the supply and work tubing. By means of appropriate
end plates, conversion from individual tubing to tubing
with the pneumatic multiple connector plate can be
made at any time. The pneumatic multiple connector
plate is available in two variants:
Pneumatic
multiple
connector plate
– Standard design of pneumatic multiple connector pla-
te which fits flush with the end plates of the CP valve
terminal. The holes for fastening to the wall or for
foot mounting are on the connection side of the
pneumatic multiple connector plate.
– Extended pneumatic multiple connector plate with ex-
ternal fastening holes.

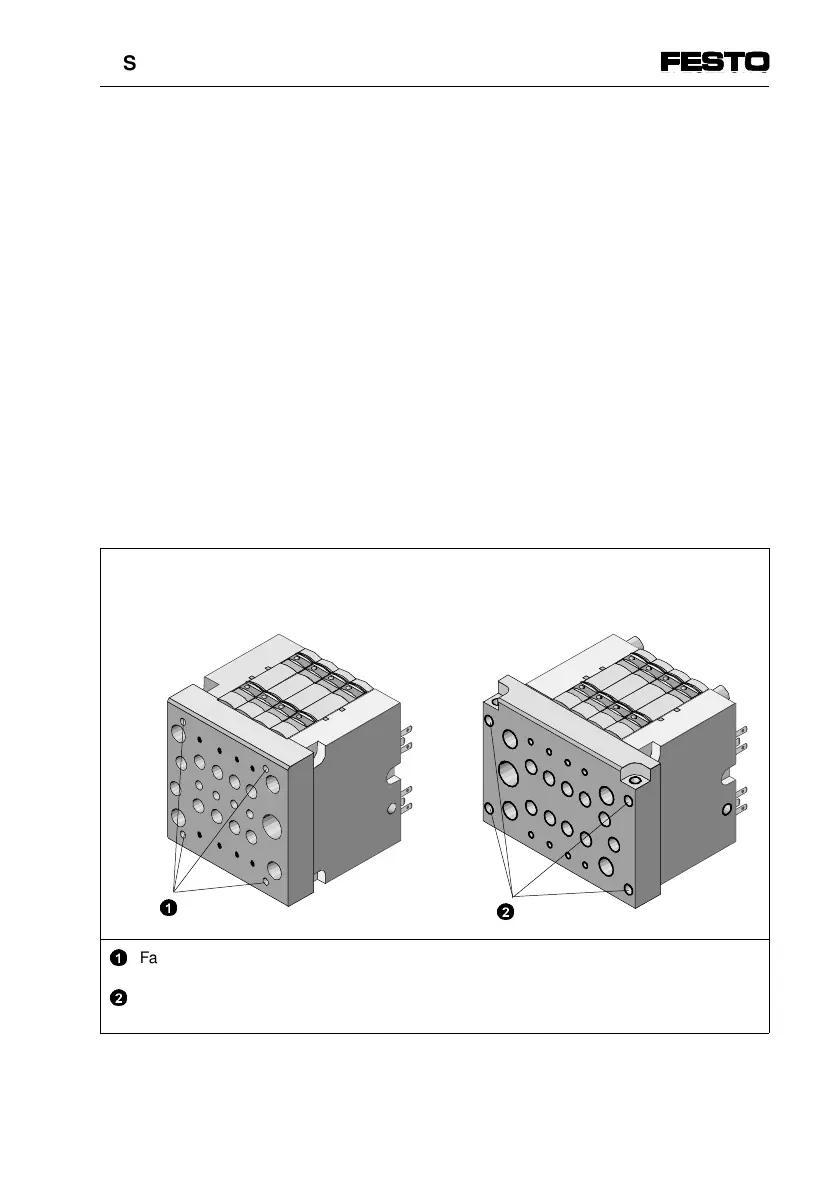

CP valve terminal with pneumatic CP valve terminal with extended
multiple connector plate (standard) pneumatic multiple connector plate
1
2
Fastening holes for fitting onto a wall on the standard design of pneumatic multiple
connector plate
Fastening holes for fitting onto a wall on the extended pneumatic multiple connector
plate
Fig. 1/2: Versions of the pneumatic multiple connector plate
1
1. System overview
CPV... 9802 1-7
