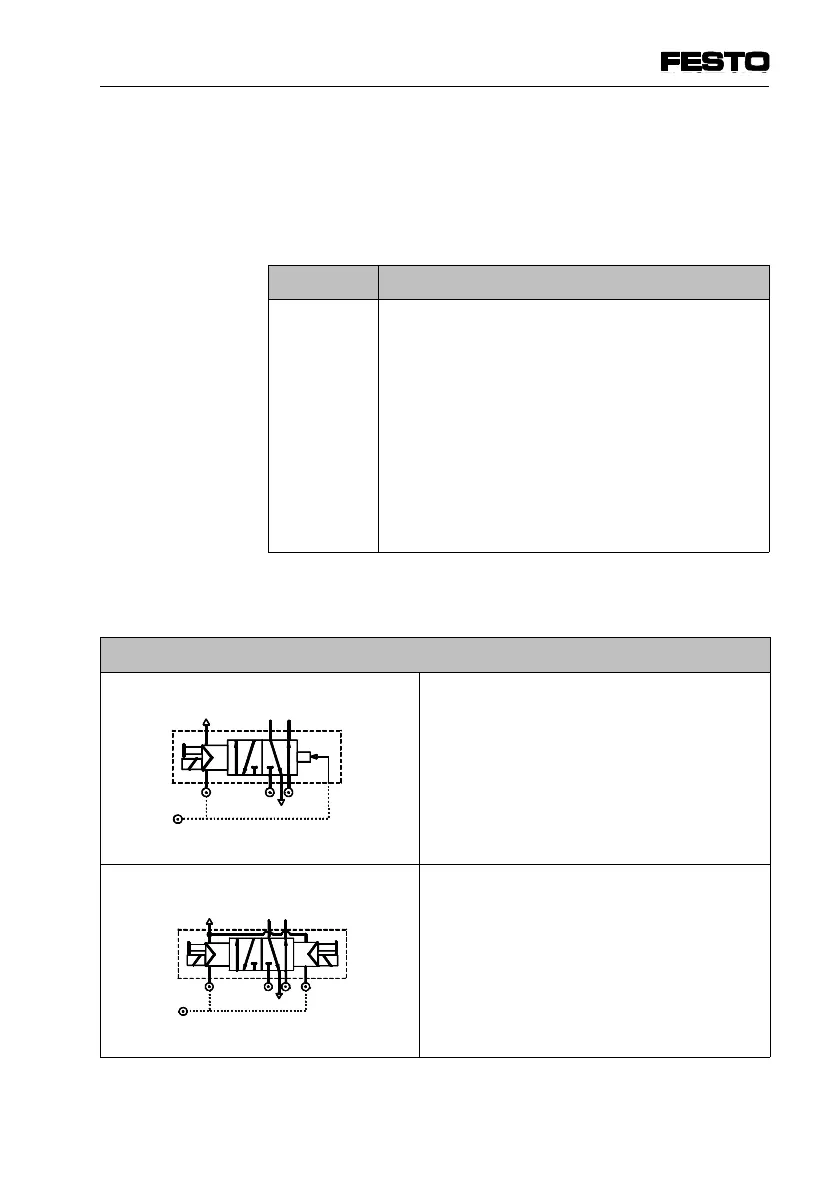

By means of the identification code, you can ascertain
which plates are fitted on your CP terminal. This code
is printed on the front between the manual overrides 12
and 14. The identification codes are as follows:
Identification
code
Ident. codes Pneumatic component
C
G
H
J
L
M
N
R
S
T
Valve plate, two 3/2-way, basic position closed
Valve plate, 5/3-way, mid-position blocke
Valve plate, two 3/2-way, one open in basic
position, one closed in basic position
Valve plate, 5/2-way, double solenoid
Blanking plate
Valve plate, 5/2-way, single solenoid
Valve plate, two 3/2-way, basic position open
Relay plate
Isolating plate, exhaust channel (3/5) and air
channels (1,11) blocked
Isolating plate, air channels (1, 11) blocked
The CP terminals are available with the following valve
plates:
Valve plates
Valve plate
Ident. code M
Function: 5/2-way single solenoid valve
Ident. code J
Function: 5/2-way double solenoid valve
2
4
82/84
12/14
1
11
3/5
14 112
82/84
12/14
1
11
4
2
112
14
1. System overview
CPV... 9802 1-9
