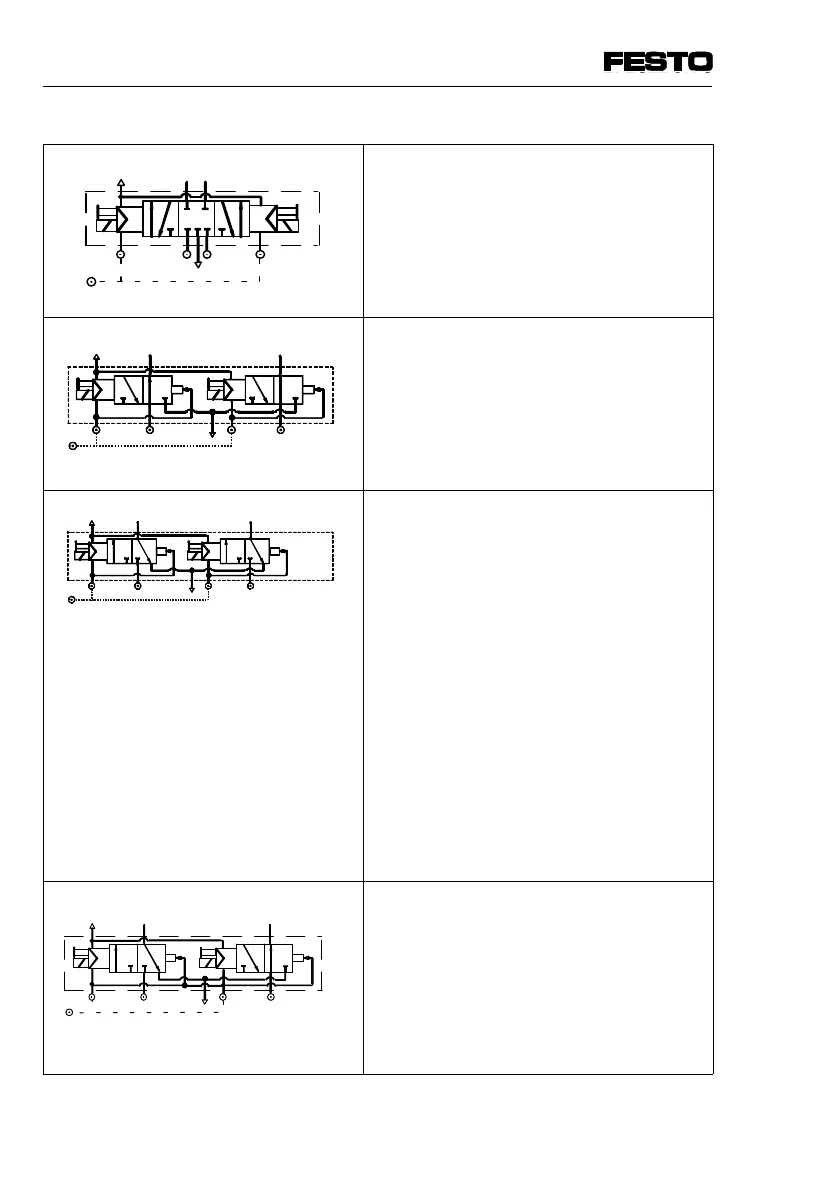

Ident.code G
Only for CPV18 terminal
Function:
5/3-way valve blocked in mid-position
Ident. code N
Function:
– Two single 3/2-way valves open in basic
position
– 5/3-way valve pressurized in mid-position.
This function is implemented with two
3/2-way valves open in basic position.
Ident.code C
Funktion:
– Two 3/2-way valves, blocked in basic position
– 5/3-way valve exhausted in mid-position.
This function is implemented with two
3/2-way valves blocked in basic position.
– In preparation: 5/3-way valve blocked in mid-
position. This function is implemented on the
CPV10/14 terminals with two 3/2-way valves
blocked in basic position in combination with
externally fitted switchable non-return valves.
PLEASE NOTE
• If you are using the 3/2-way valves as a
5/3-way mid-position valve, make sure that
your control program does not actuate both
valve solenoid coils of the 3/2-way valves at
the same time thereby actvating a double-
acting cylinder.
Ident. code H
Function:
two 3/2-way valves on control side 110 basic
position open and on control side 14 basic
position closed.
2
12/14
1
3/5
11
82/84 4
10
110
2
4
12/14
1
3/5
11
82/84
112
14
2
12/14
1
3/5
11
82/84
4
14
112
2
4
12/14
1
3/5
11
82/84
110
14
1. System overview
1-10 CPV... 9802
