Festo CP Series User Manual

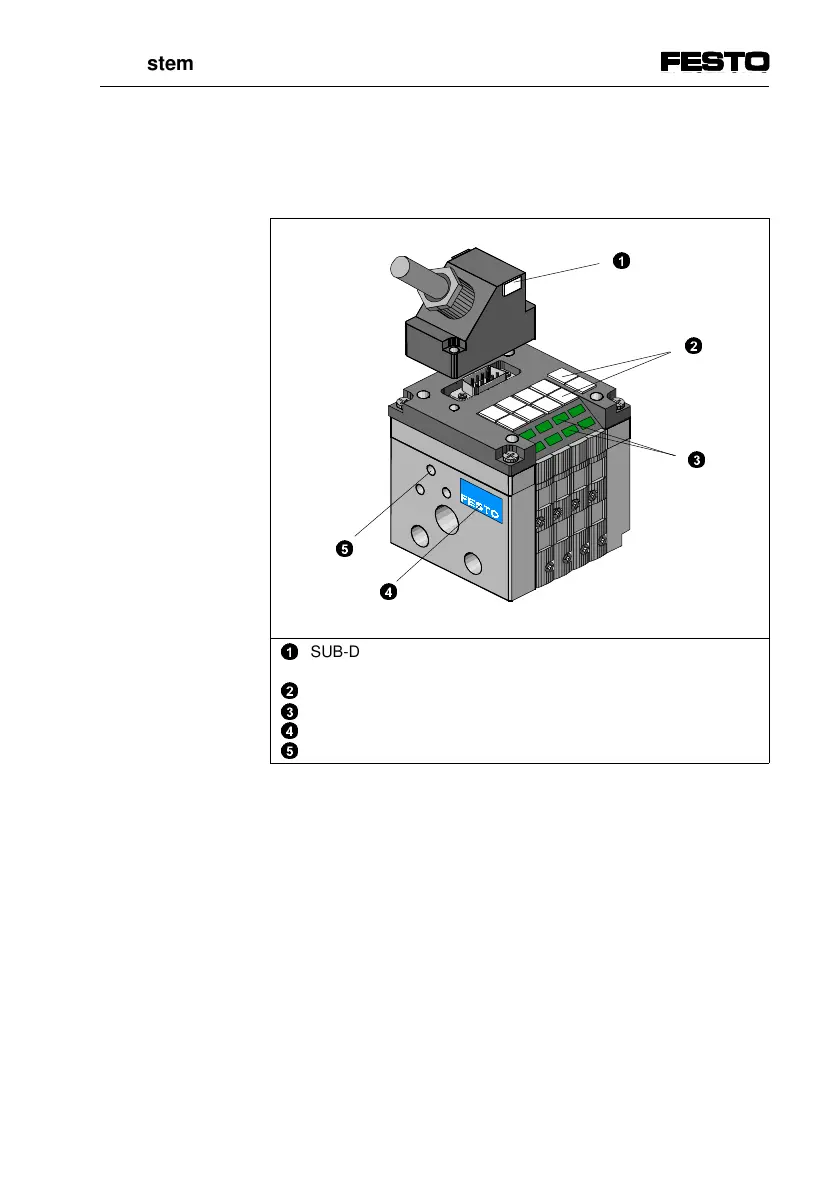

On the CP valve terminal with MC connection you will
find the following connections and display elements:
1
2
3
4
5
SUB-D multipin plug ( 9-pin for terminals with 4 valves,
25-pin for terminals with 6 or 8 valves)
Label clip
Yellow LEDs, signal status displays of the pilot solenoids
Type plate
Earth/ground connection (per end plate)
Fig. 1/6: Electrical connections and display elements
of the CP valve terminal with MC connection
4
1
3
5
2
1. System overview
CPV... 9802 1-13
