Connecting current-consuming devices to the
relay plate
PLEASE NOTE
Use only the ready made cable KRP-1-24-... from
Festo for connecting current-consuming devices to
the relay outputs.
Connect the current-consuming devices to the relay
outputs as follows:
• Carefully insert the socket first onto the connecting
lug of the lower relay output (see diagram).
• Screw the socket tight with the central locking screw
(tightening torque 0.15 Nm).
• Fit the second socket to the upper relay output in the
same manner.

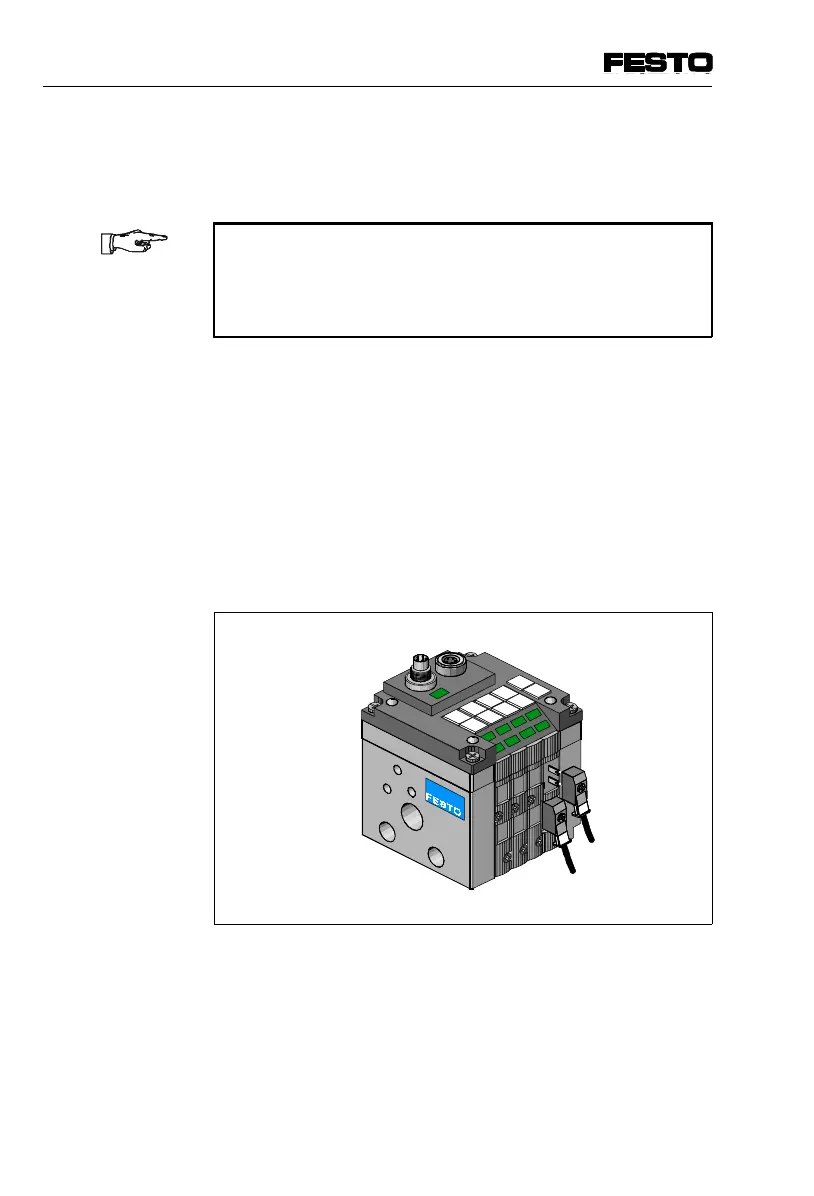

Fig. 3/6: Fitting the relay output sockets
3. Installation
3-12 CPV... 9802

Festo CP Series Specifications

General

Type	Controller
Series	CP
Category	Controller
Manufacturer	Festo
Operating Voltage	24 V DC
Protection Class	IP20
Communication Interface	CANopen, PROFINET
Programming Environment	Festo Automation Suite
Number of Axes	Varies (depending on model, typically up to 6 or more)
