Arrange the measuring nozzles
1. Place sensor module above the measuring nozzles è Fig.6.
2. Use suitable tubing length: 0.5…8m
6.3.1 H-rail Mounting

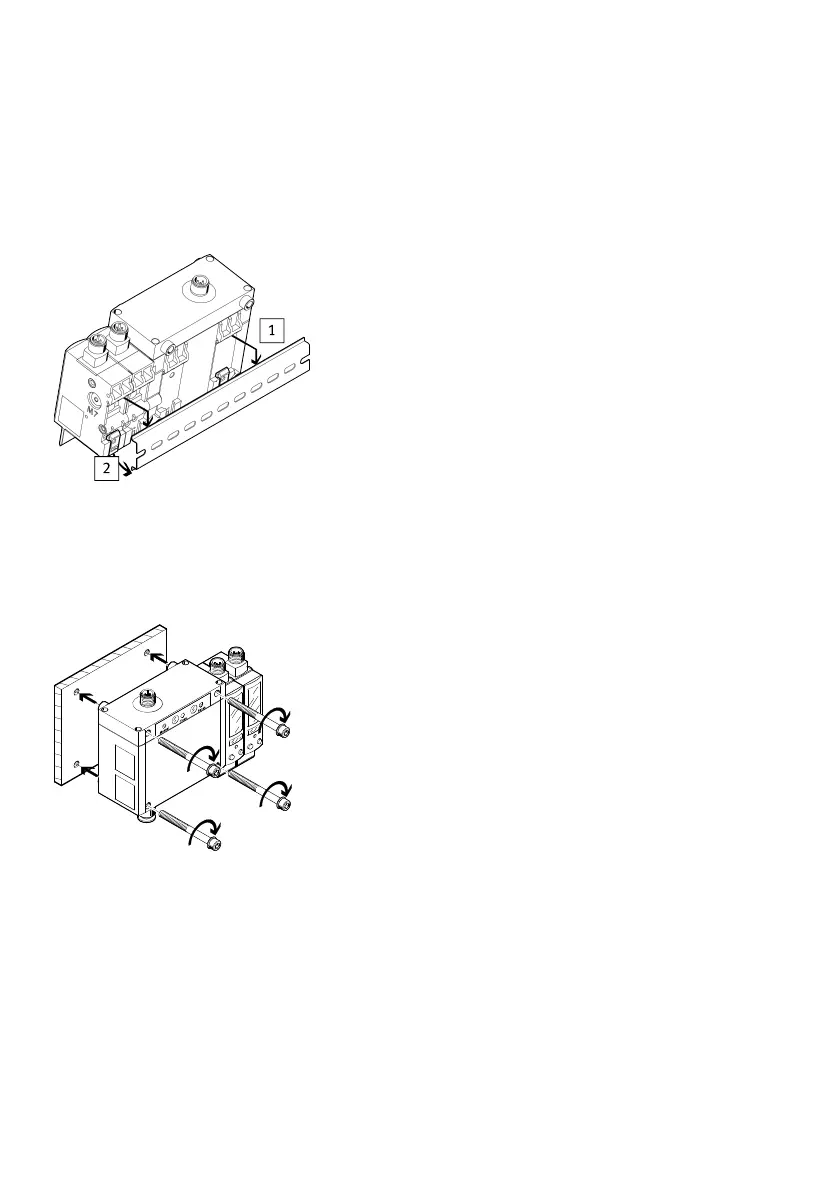

Fig. 12 H-rail Mounting
1. Hang H-rail mounting in the H-rail 1.
2. Press the H-rail mounting in the direction of the arrow until the mounting slide catches 2.
6.3.2 Plate mounting
Fig. 13 Plate mounting
1. Prepare threaded holes M5 è 15.3 Hole patterns.
2. Guide screws through the sensor and tighten. Use washers.
– Tightening torque: 0.6Nm
