6.5 Accessories
Identifier Type
Straight socket NEBU-M12G5-K-...Connecting cable
Angled socket NEBU-M12W5-K-...
Differential pressure regulator LRLL-1/8-QS-6
Adapter plate for wall mounting
1)
SXE3-...-W...
Blanking plug B-M7
Push-in fitting QSM-M7-6-I
1) Included in the scope of delivery for SOPA-...-W-...
Tab. 9 SOPA accessories
7 Installation
7.1 Pneumatic Installation
1
Control module
2
Sensor module

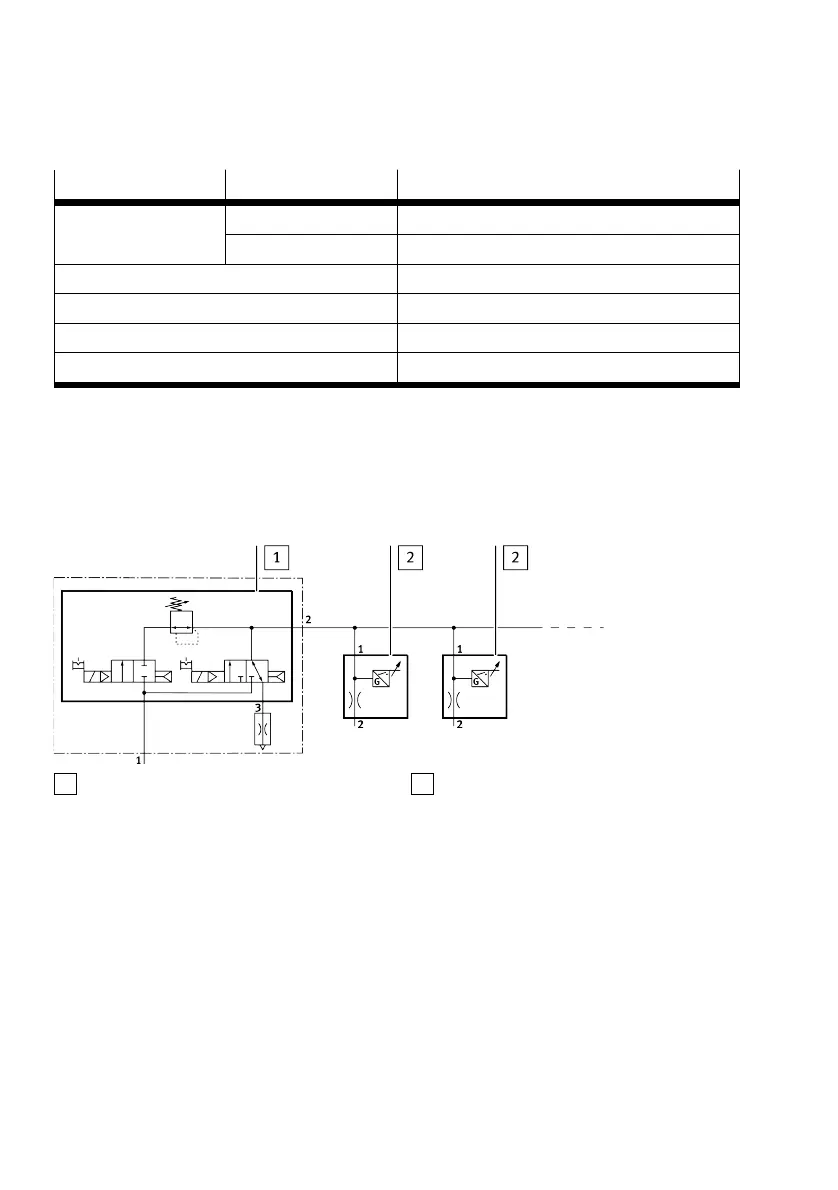

Fig. 16 Pneumatic Installation
1. Insert tubing into push-in fitting.
– Outside diameter: 6mm
2. Connect the supply port for the measuring nozzle to the corresponding measuring nozzle è Fig.6.
3. For operation with a control module: connect supply port for operating medium to the com-
pressed air source.
For operation without a control module: connect the supply port for the supply pressure to the
precision pressure regulator.
4. Ensure adequate exhaust at the vent screw connection (via vent screw or differential pressure reg-
ulator (LRLL-1/8-QS-6) è Fig.1.
Tubing at Standstill
• To avoid contamination of the measuring nozzles, remove the vent screw and use this connection
to supply purge air.
