5.1.2 Display components
1
Display of binary output OutA
2
Display of binary output OutB
3
Display of binary output OutC
4
4-digit alphanumeric display
5
Toolbar for functions
6
Bar graph

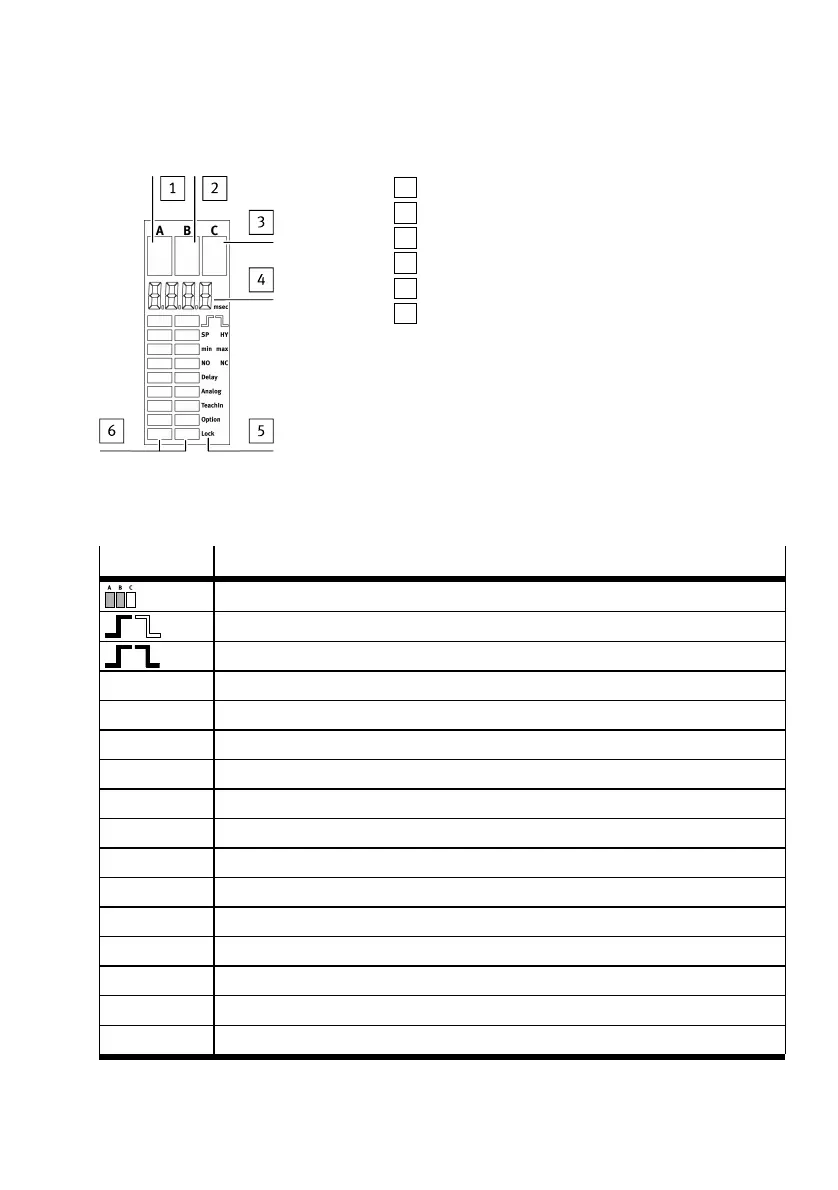

Fig. 2 LCD display
5.1.2.1 Symbols on the display
Symbol Description
Display of binary signals set/not set (in example A, B: set - C: not set)
1)
Threshold value comparator
Window comparator
[SP] Switching point
[SP][min] lower switching point
[SP][max] upper switching point
[HY] Hysteresis
[NO] Switching characteristic of contact (normally open)
[NC] Switching characteristic of contact (normally closed)
[min]/[max] Minimum/maximum input value (in A/B/C)
[Delay] Switch-off delay for the numerical display
[Analogue] Settings for analogue output
[TeachIn] Teach mode active
[Option] Options for spurious pulse suppression (Off, 1, 2)
[Lock] Security code active (block to prevent unauthorised parameterisation)
[Spec] Special menu (SPEC) active
