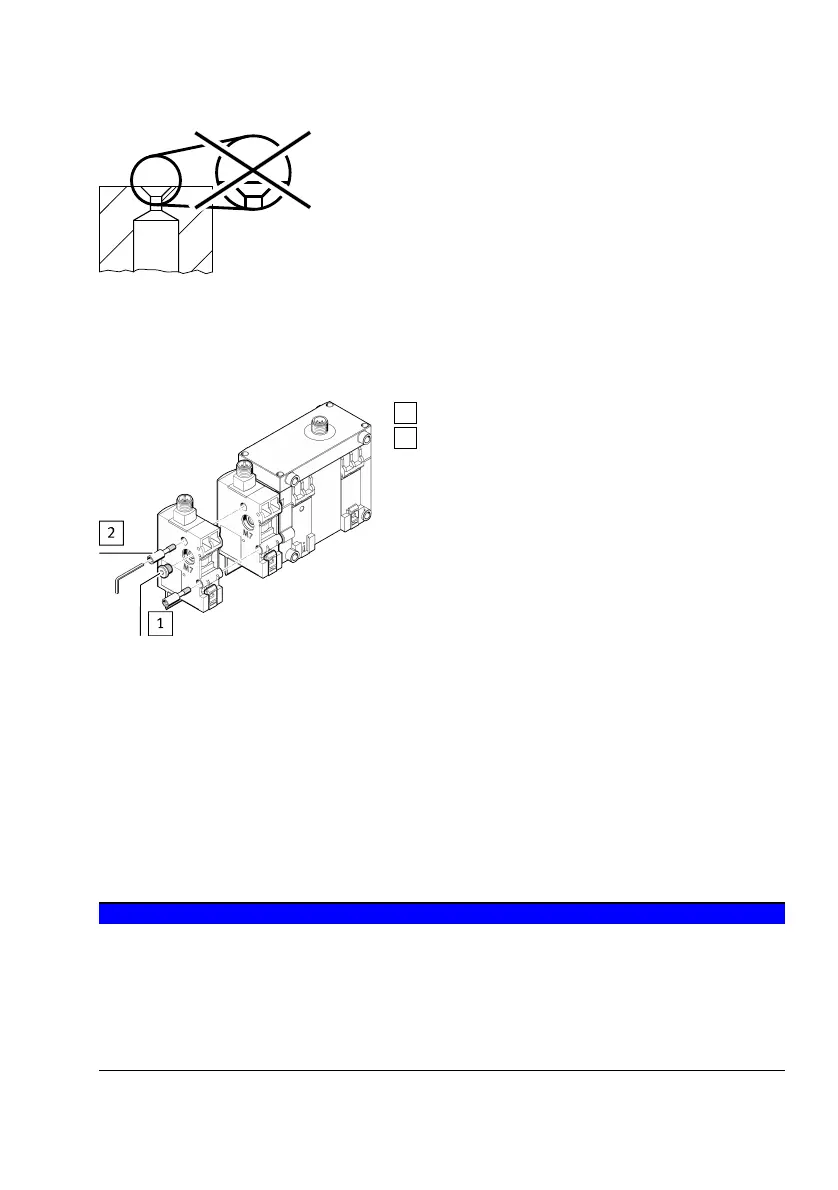

Fig. 10 Impermissible measuring nozzle configuration
6.2 Assembling sensor module with control module
One control module can be connected to a maximum of 4 sensor modules.
1
Blanking plug
2
Threaded sleeve
Fig. 11 Mounting the Sensor Module
1. Loosen the blanking plugs with an Allen key.
– Width across flats (SW): 3mm
2. Make sure the sealing ring on the sensor module is seated properly.
3. Press the sensor module lightly and tighten the threaded sleeve with an Allen key.
– SW: 2.5mm
– Tightening torque: 0.5Nm
4. Tighten the blanking plugs on the last sensor module by hand.
– SW: 3mm
6.3 Mounting the sensor module
NOTICE!
Damage due to Ingress of Foreign Matter or Liquids
In the event of an inappropriate measuring nozzle configuration or inappropriate routing of the com-
pressed air lines, foreign matter or liquids (e.g.condensation) can enter the product and cause a mal-
function or damage the product.
• Prevent the entry of foreign matter and liquids through design measures, forexample through a
suitable configuration of the measuring nozzles.
Assembly
19Festo — SOPA — 2020-04
