Control Panel Installation FIK-RA100 Remote Annunciator Installation

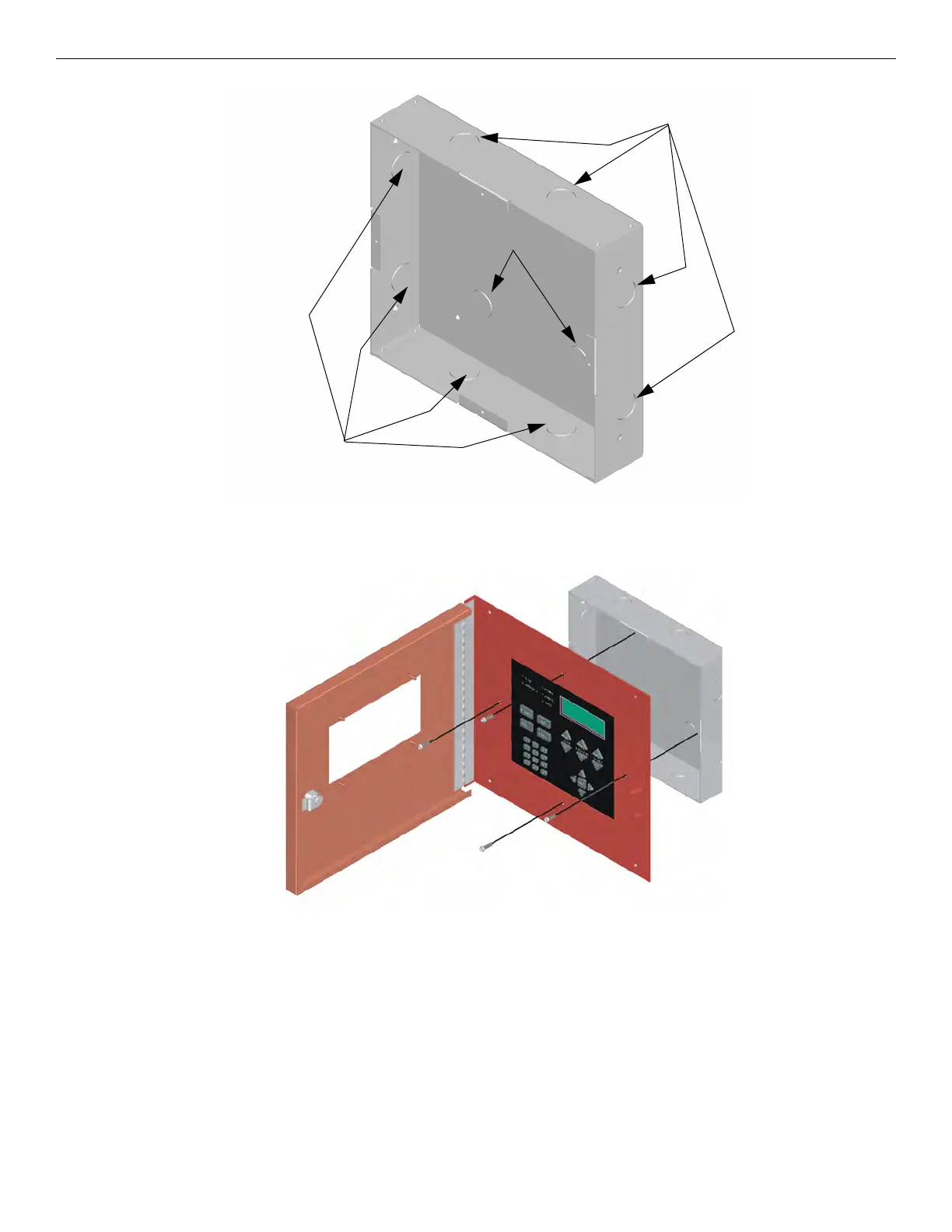

Figure 4.11 Back Box Knockout Locations
3. Wire the Annunciator board to the main control panel. See Figure 4.8.
4. Attach the annunciator and door assembly to back box as shown in Figure 4.12 using the supplied screws.
Figure 4.12 Attaching Annunciator/Door Assembly to Backbox
wire knockouts
wire knockouts
wire knockouts
