E- HAND ACCELERATOR MICROSWITCH (fi g.1)
If the hand accelerator lever is not in the initial position, it is impossible to move the vehicle.

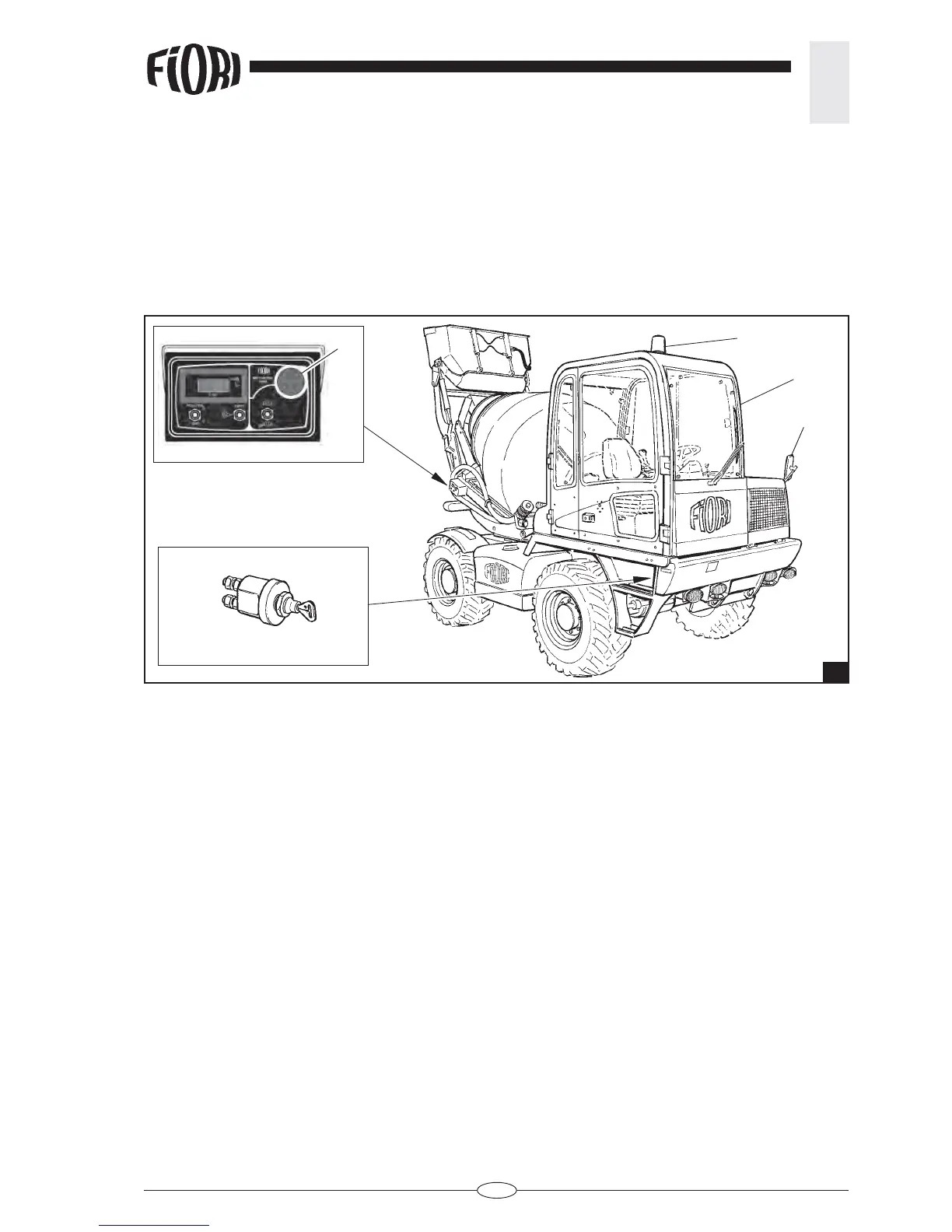

G - GROUND CONTROL EMERGENCY STOP BUTTON (fi g.2)
Positioned on the rear right-hand side of the vehicle, pressing it will automatically turn off the diesel
engine.
H - BATTERY MASTER SWITCH KEY (fi g.2)
When the key is removed, the negative cable of the battery is disconnected and hence the power to
the electric system. It prevents unintentional starting of the engine during maintenance. It allows welding
operations to be performed without having to disconnect the battery terminals.
CAUTION: The battery master key does not have an emergency stop function. Removing the battery
master key when the engine is running, does not turn off the engine but only damages the
current alternator.
L - ROTATING BEACON (fi g.2)
Fixed on the cabin roof, it signals the presence of the vehicle.
M - OPERATOR’S PROTECTION / CABIN WITH “FOPS - ROPS” STRUCTURE (fi g.2)
Designed and constructed to safeguard the operator in the event of the vehicle overturning and objects
falling from heights.
F - DEACTIVATION BUTTON FOR ARM DESCENT LOCKING VALVE (fi g.1)
If the button is not pressed, the arm will not lower even if operating the joystick.
N - REAR VIEW MIRROR (fi g.2)
The rearview mirror is essential for visibility of the rear left-hand side of the vehicle.
Correctly position the mirror before starting.
