SAFETY PRECAUTIONS
id.:
DB 460 REV. 00 02/01/2015

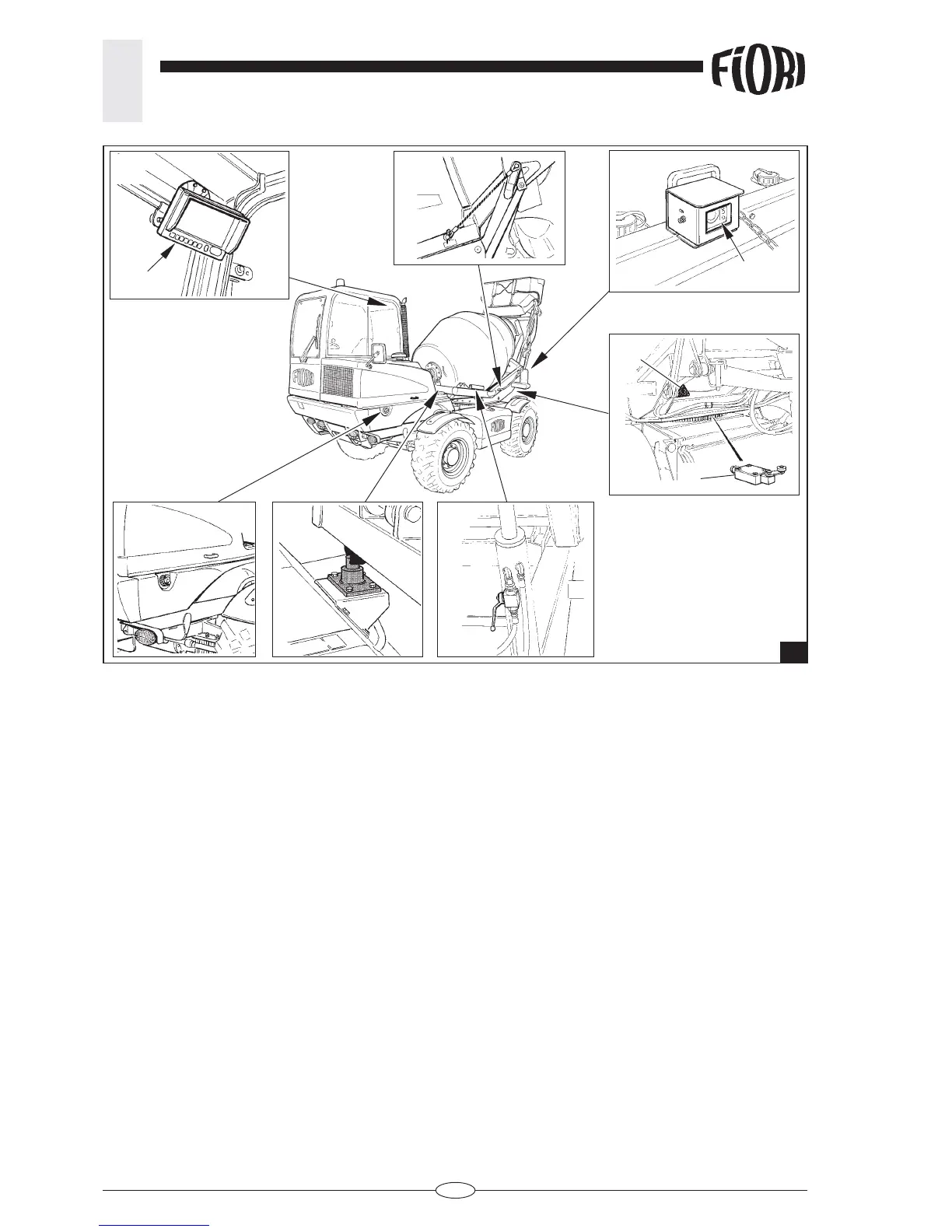

O - DRUM FALL STOP DEVICE (fi g.3)
P - DRUM COUNTERFRAME ROTATION STOP DEVICE (fi g.3)
When it is engaged, the drum counterframe cannot rotate; it is automatically engaged when the drum is
lowered parallel to the driving direction.
Keep it engaged during road transfers and when loading from a heap.
Q - DIESEL TANK CAP WITH KEY (fi g.3)
It is fi tted with an anti-drip valve in the event of the vehicle overturning.
S - REAR SIDE HORN (fi g.3)
R - ARM LOCKING CABLE (fi g.3)
When the bucket arm is raised, it prevents accidental lowering of the arm during transfer and transport.
T - ARM DESCENT SWITCH (fi g.3)
Once the drum has rotated beyond 180° towards the front, the loading arms cannot be lowered.
CAUTION: During front unloading, always check that the arm is raised. During front unloading never
touch the arm control lever. It is advisable to engage the CONTROL LOCK (C).
When the drum is raised and the valve handle is turned, the cylinders hydraulically lock even when the
engine is off, preventing accidental lowering during maintenance operations.
Acoustically warns that the engine is starting and that the reverse gear is engaged. It also indicates when
the drum counterframe rotates.
P
O
U
3
Q
S
T
R
1
V
