Maintenance Instructions
Seite/Page 110 Panda PMS 8.000 NE - 42 NE Manual.R05 - Kapitel/Chapter 6: Maintenance Instructions 22.3.11

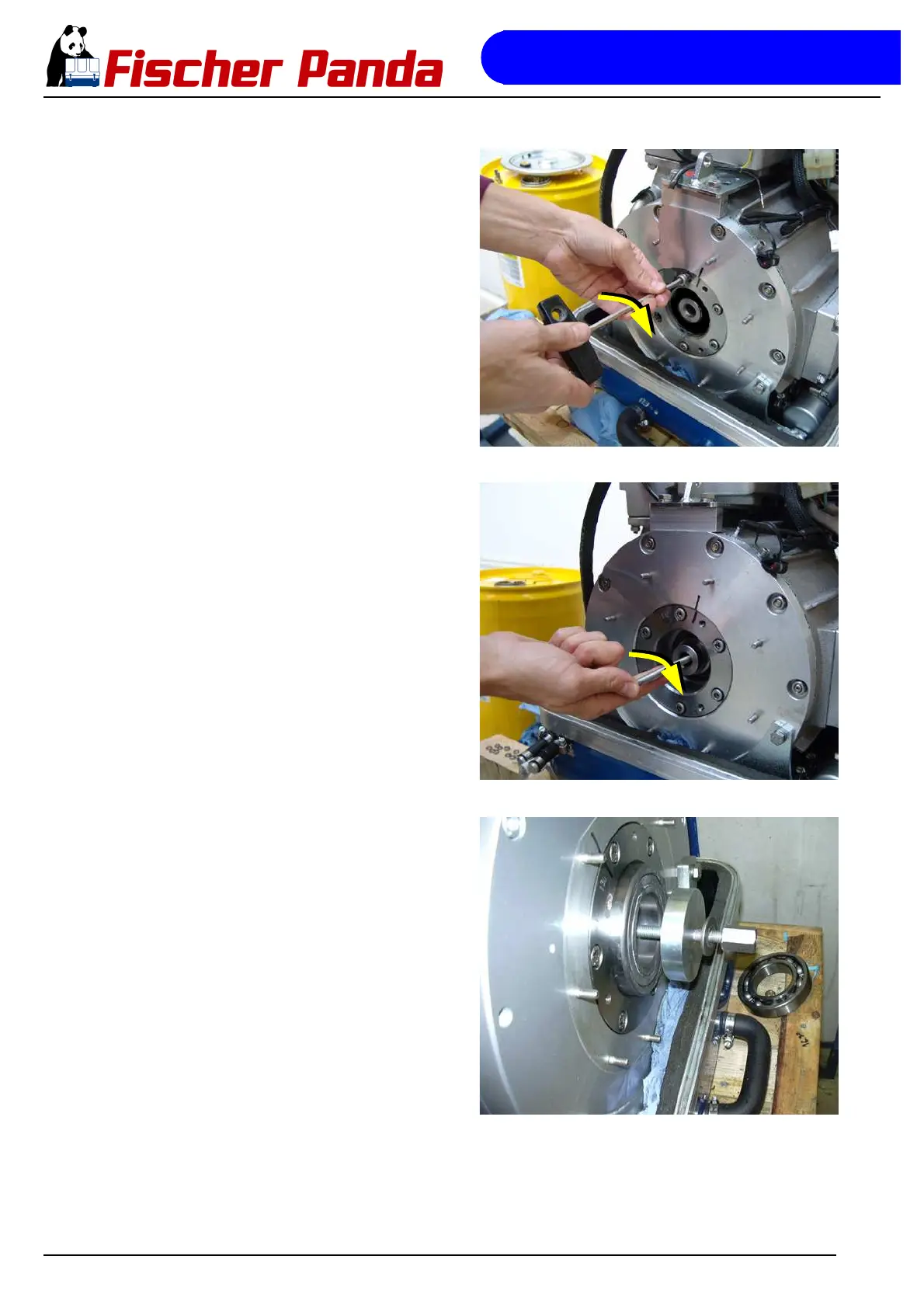

Fig. 6.8.1.3-4: ’Attach bearing case Tighten fixing bolts M8 with 22 to 25 Nm (Allen key SW6).
Now carefully press the bearing case with a soft-head hammer
(or a hammer plus mandrel) in its hub.
Thereby relocate mandrel rotatory after each hit to avoid can-
ting.
Otherwise there is a risk that the case is slightly canted
because of the material which is brought up by the ejector
screws.
A canted bearing case causes a canted ball bearing, which will
wear out quite fast!
Sample Picture
Fig. 6.8.1.3-5: Screw in thread rodScrew in thread rod into the thread hole of the generator shaft
as far as possible.
Sample Picture
Fig. 6.8.1.3-6: Put on ball bearingSlide on ball bearing, pressure ladle, grommet up to the shaft,
screw on long hexagon nut. Grease/Oil thread rod.
Guide ball bearing with one hand to avoid canting on the shaft.
Sample Picture
