Impellerfilter
31.06.03.003P_Kunde_Impellersieb_Panda_6,8,9,10,12,14_PMS_eng.fm Kapitel 9: Impellerfilter - Page/Seite 181
Fischer Panda Datasheet
Impellerfilter.
The impellerfilter is mounted at the right front motor-
base.

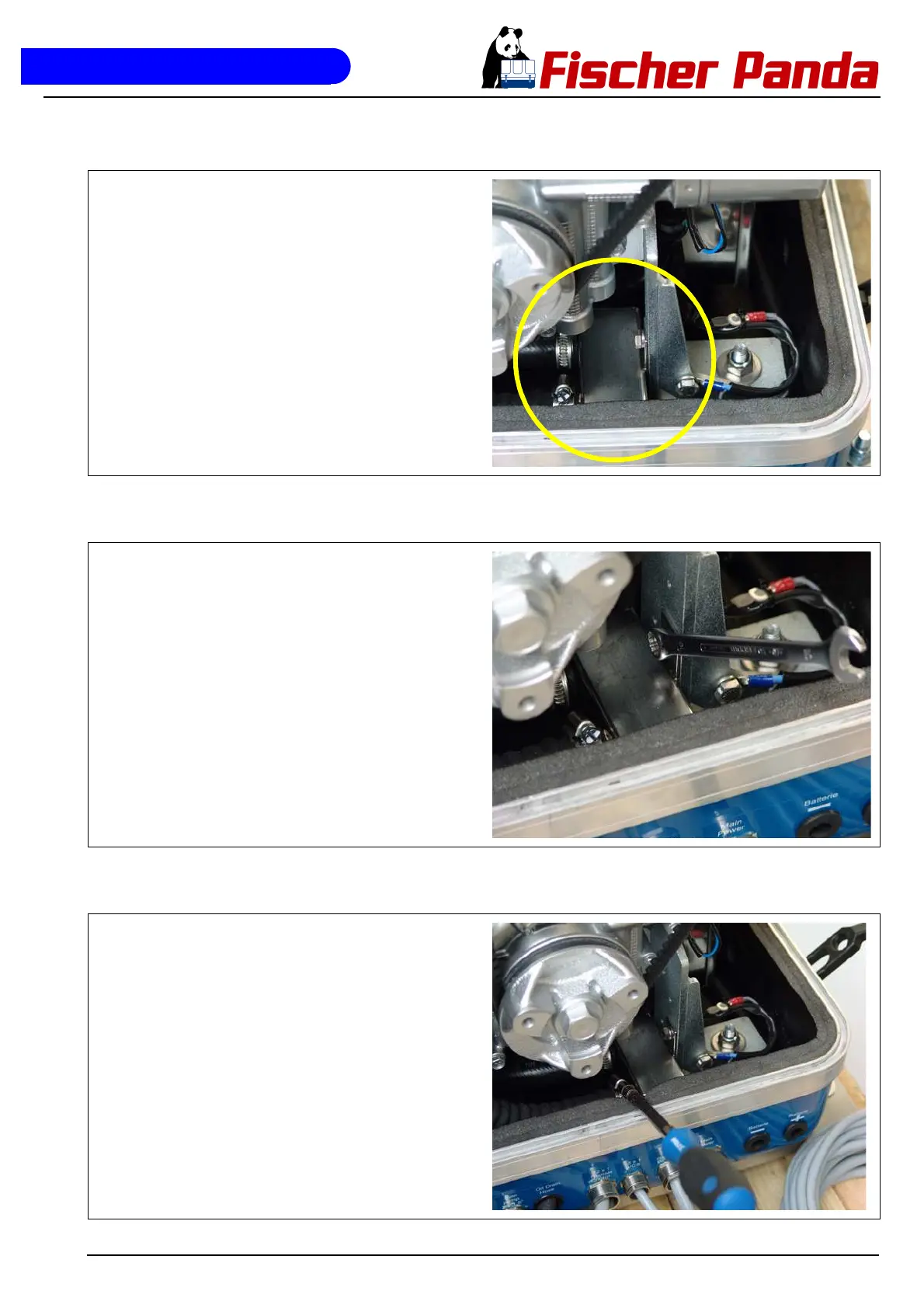

Fig. 9.3-1: Impellerfilter
Loose holding screw.
Loose the holding srew two turns.
Srew M6 (*SW 10)
*SW 10 = wrench size 10mm
Fig. 9.3-2: Holding screw
First hose clamp.
Loose the front hose clamp.
Use a screwdriver, or better a wrench SW 7mm.
Fig. 9.3-3: First hose clamp
