Impellerfilter

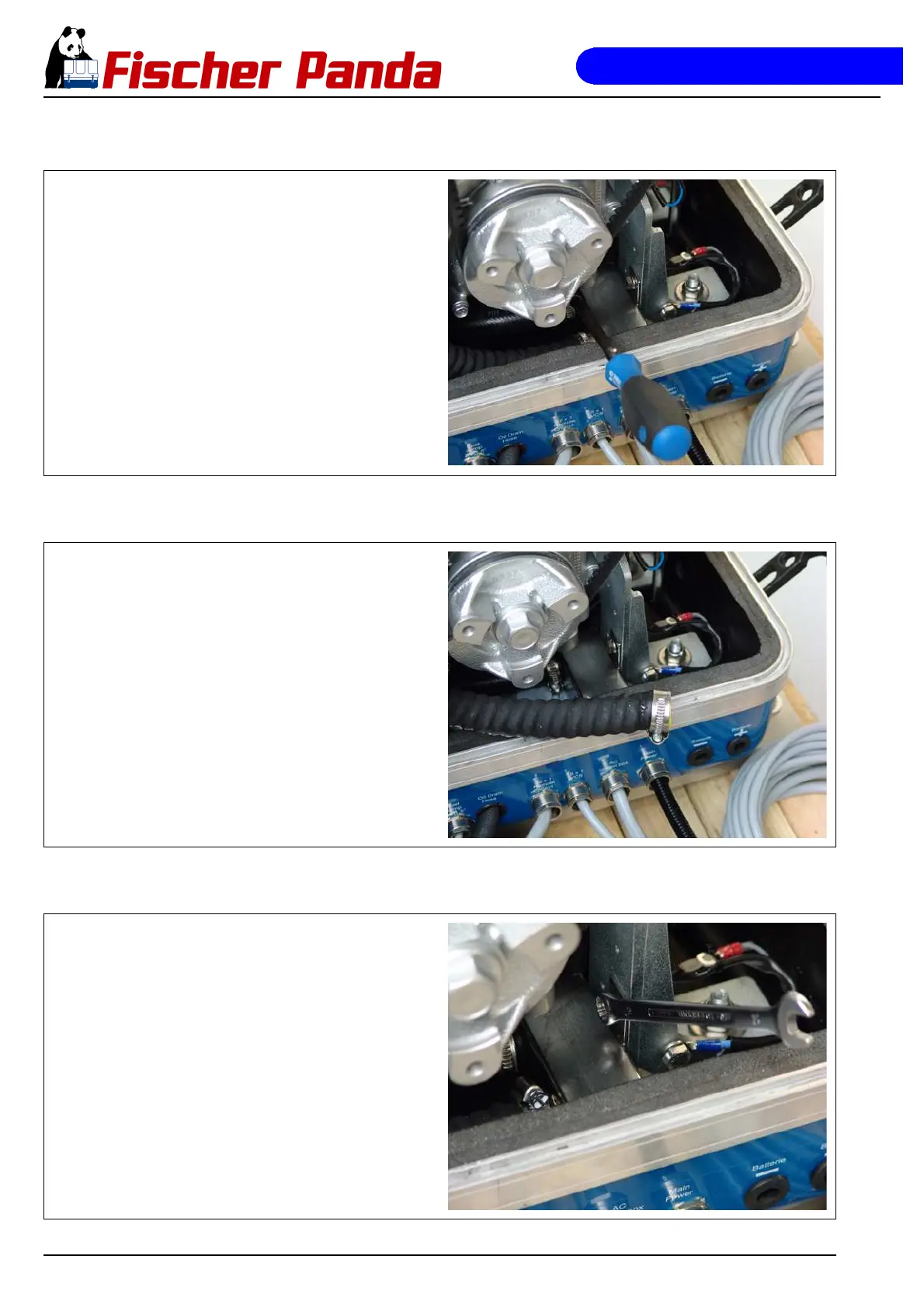

Page/Seite 182 - Kapitel 9: Impellerfilter 31.06.03.003P_Kunde_Impellersieb_Panda_6,8,9,10,12,14_PMS_eng.fm
Fischer Panda Datasheet
Second hose clamp.
Loose the second hose clamp.
Use a srew driver, or better a wrench SW 7mm.
Fig. 9.3-4: Second hose clamp
Remove the cooling water hose.
remove the first cooling water hose.
Some raw water may flow out of the hose or the
impellerfilter.
The hose can be closed with the cap you get toge-
ther with the impellerfilter spare part pack.
Fig. 9.3-5: cooling hose
Remove the holding srew.
Remove the impellerfilter holding screw.
Fig. 9.3-6: Holding screw
