Fischer Panda Panda 8000 - Rear View 12 V-Version

General operation
Seite/Page 248 - Kaptitel/Chapter H: General operation 19.8.14
H.1 Rear view 12 V-version
Fischer Panda Art. No. 21.02.02.009P

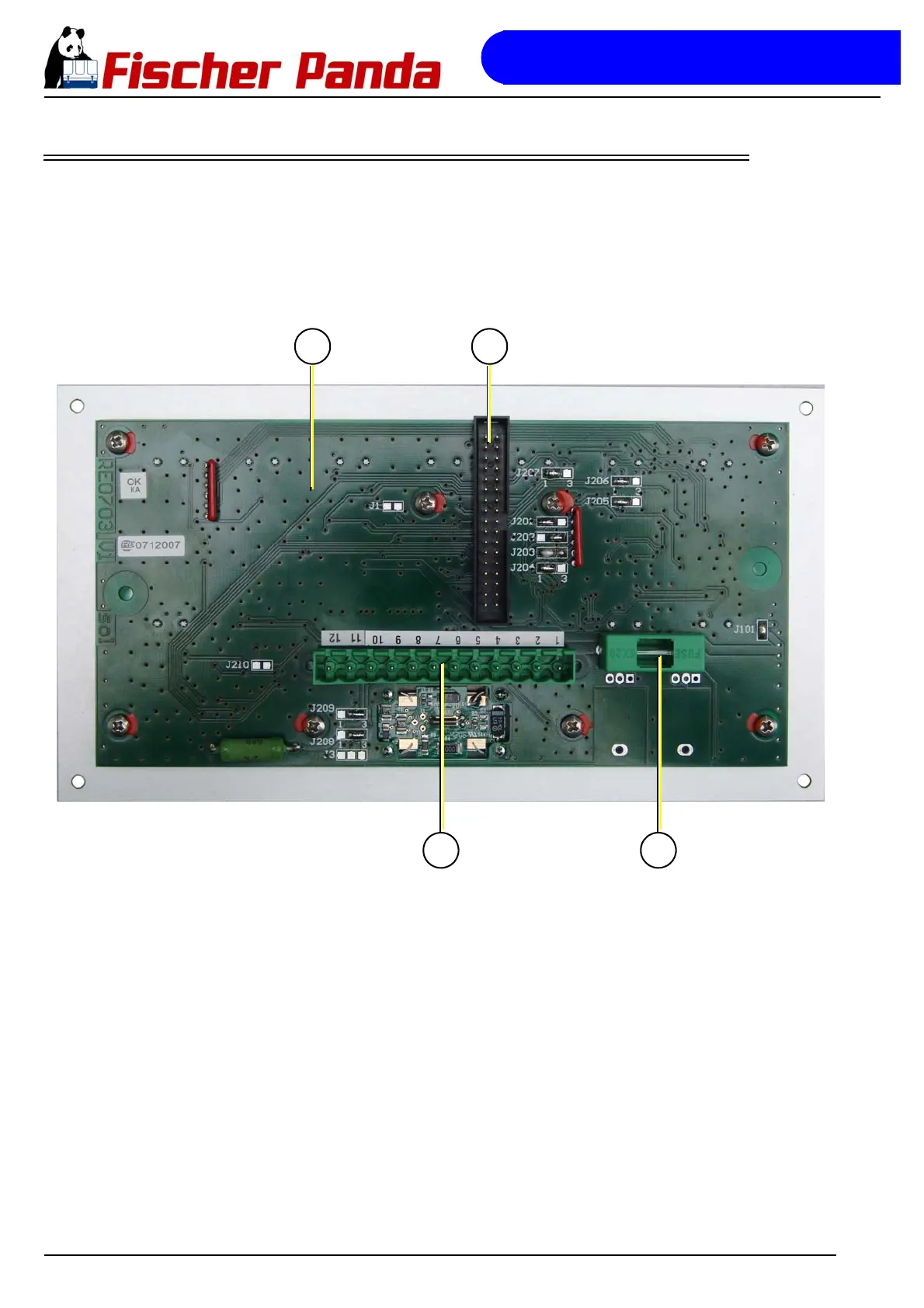

Fig. H.1-1: Panel rear view 12 V-version
0201
03 04
01. Control board
02. Terminal block (master-slave adapter: left row; automatic adapter: right row)
03. Terminals 1-12 (see section H.3.2, “Terminal connections,” on page 250)
04. Fuse 630 mA slow-blow
