The Panda Generator
19.8.14 Kapitel/Chapter A: The Panda Generator - Seite/Page 39
A. The Panda Generator
A.1 Description of the genset
A.1.1 Front View

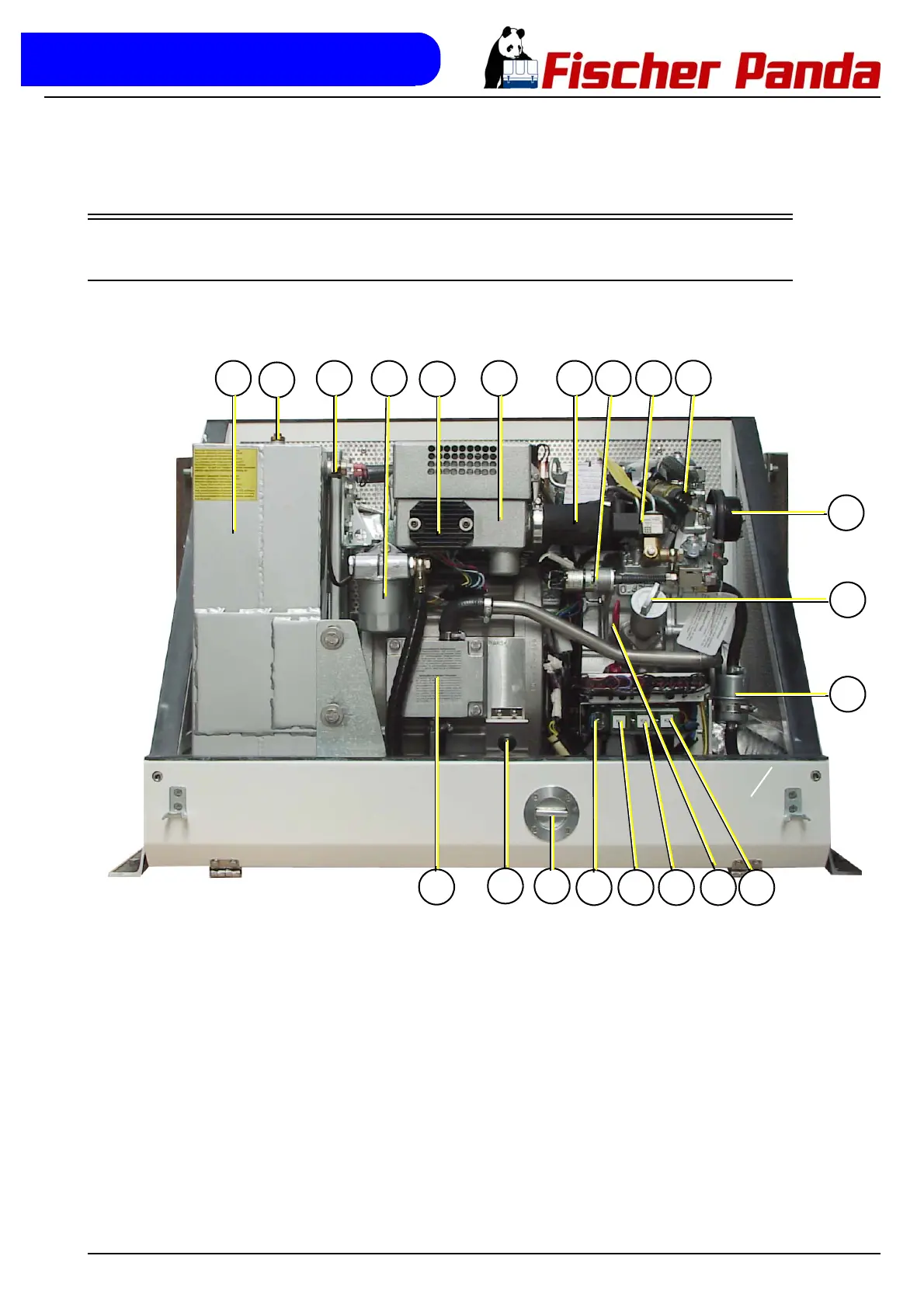

Fig. A.1.1-1: Front View
21
20 19
18
01
02
06
17 16
03 04
05
07 08 09
10
15 14
11
12
13
01. Watercooled silencer
02. De-aerating screw at the silencer
03. Thermo-switch at the silencer
04. Oil filter
05. Charge controller for DC-alternator
06. Air suction housing with air filter
07. Air suction tube, housing - induction elbow
08. Actuator for rpm-regulation
09. Fuel solenoid valve
10. Stop solenoid
11. Pulley for internal cooling water pump
12. Alternative oil filler neck
13. Fuel filter
14. Oil dipstick
15. Power relay K3
16. Power relay K2
17. Power relay Ks
18. Electrical fuses
19. Passage oil drain hose
20. Failure bypass switch
21. Cooling water connection block
