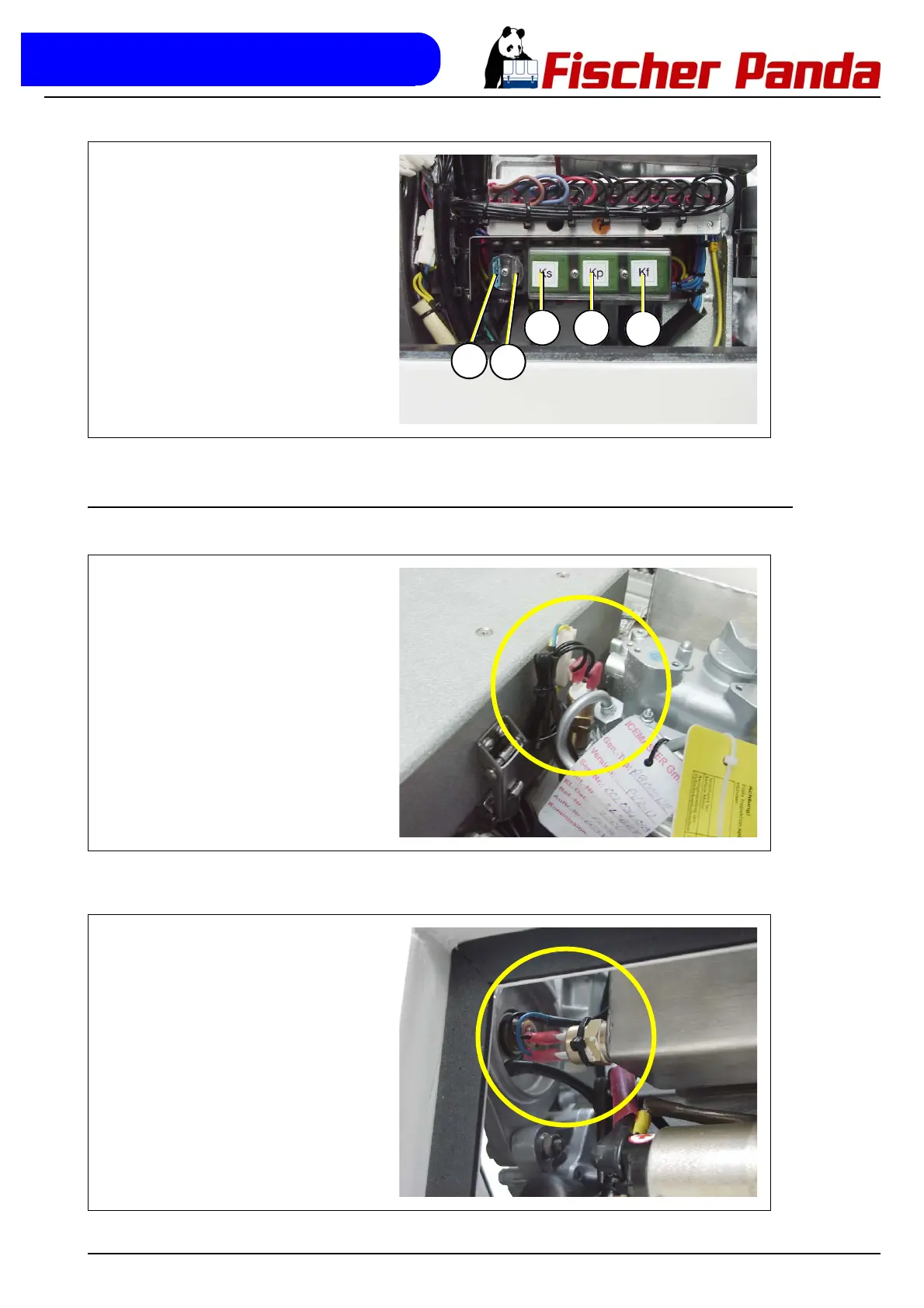

A.2.6 Sensors and switches for operating surveillance
Terminal block for remote control cable
with fuse and power relais
F1 fuse 15A for DC wiring
F2 fuse 25A for starter relay
Ks power relay for Starter
K2 power relay for Glow plugs
K3 power relay for Fuel pump
Fig. A.37: Terminal block
Thermo-switch at cylinder head
Fig. A.38: Thermo-switch at cylinder head
Thermo-switch at water-cooled
exhaust manifold
Fig. A.39: Thermo-switch at exhaust manifold
