Fischer Panda Panda 8000 - H.2 Rear view 24 V-version

General operation
19.8.14 Kapitel/Chapter H: General operation - Seite/Page 249
H.2 Rear view 24 V-version
Fischer Panda Art. No. 21.02.02.012P

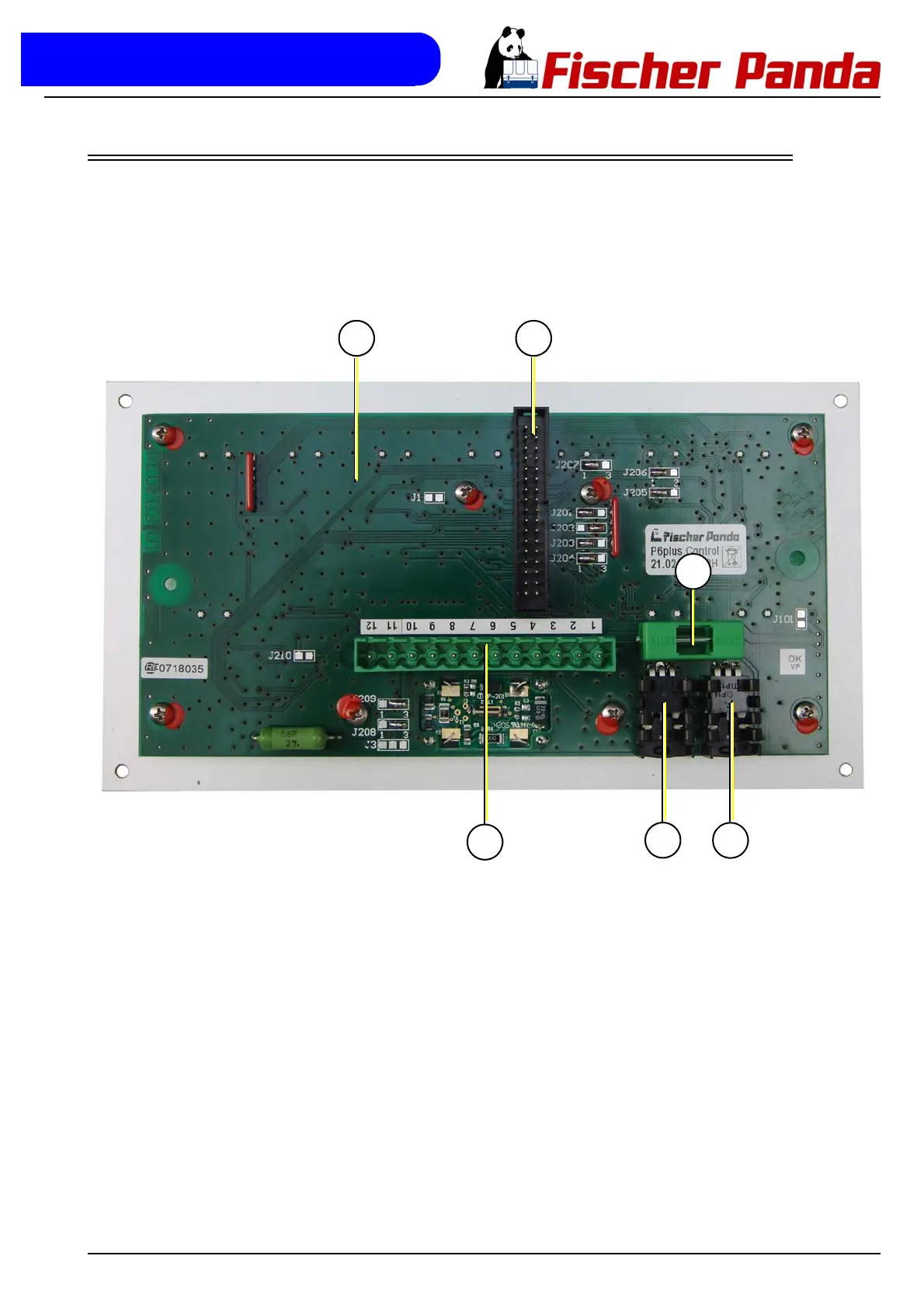

Fig. H.2-1: Panel rear view 24 V-version
0201
04
05
06
03
01. Control board
02. Terminal block (master-slave adapter: left row; automatic adapter: right row)
03. Fuse 630 mA slow-blow
04. Terminals 1-12 (see section H.3.2, “Terminal connections,” on page 250)
05. Linear controller 24 V
06. Linear controller 24 V
