A.2.3 Components of fuel system
Electrical fuel pump
The Panda generator is always supplied
with an external, electrical (12 V of DC) fuel
pump. The fuel pump must be always
installed in the proximity of the tank. The
electrical connections with the lead
planned for it are before-installed at the
generator. Since the suction height and the
supply pressure are limited, it can be
sometimes possible that for reinforcement
a second pump must be installed.

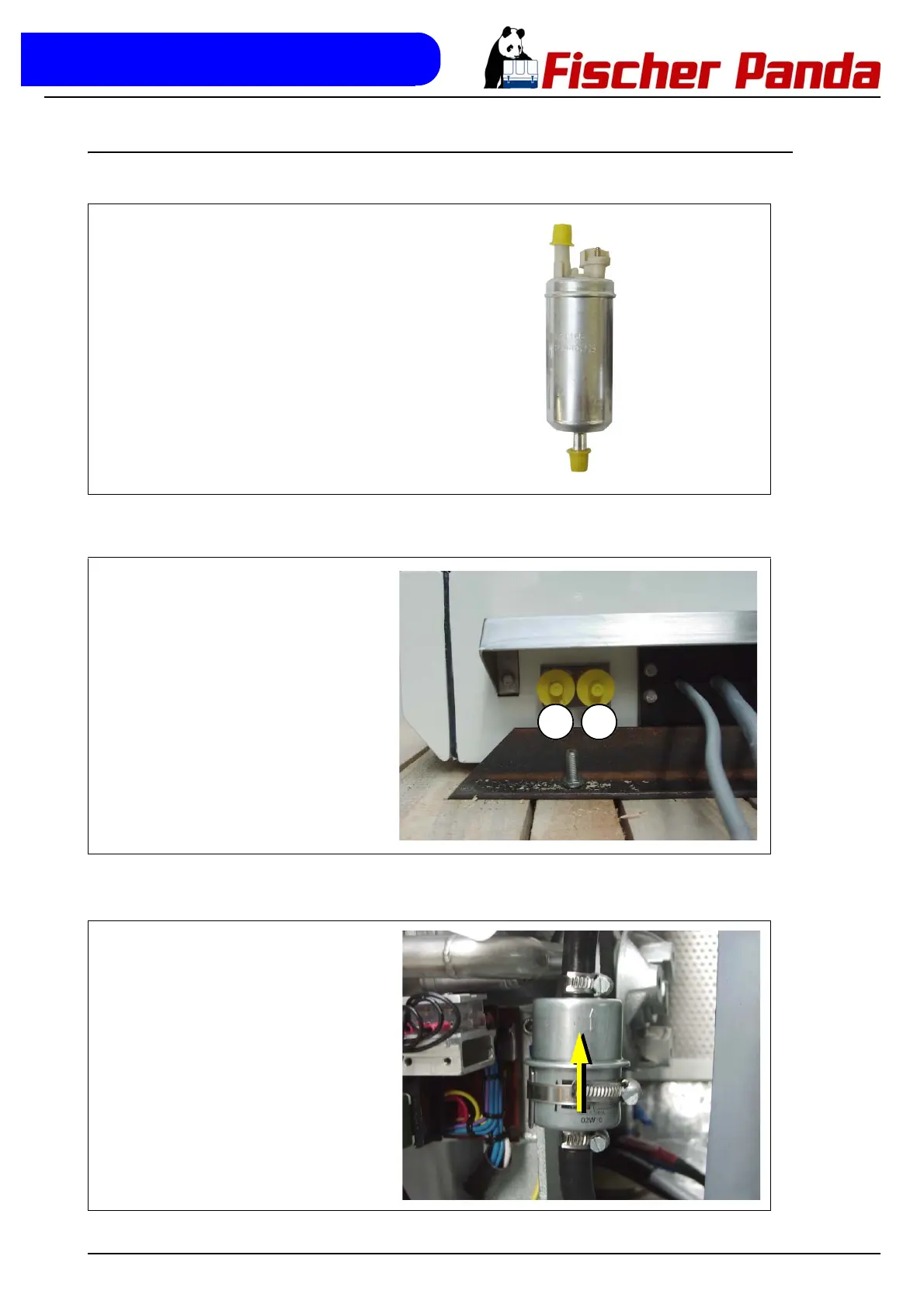

Fig. A.13: Electrical fuel pump
Connecting pieces for the fuel pipe
1. Fuel intake
2. Fuel return
Fig. A.14: Fuel connections
Fuel filter
A consequential filtering of fuel is
especially important for all marine systems.
A fine filter, which is firmly attached to the
inside of the sound insulation capsule for
the marine version, is supplied on delivery,
and loose for other makes. In all cases a
further pre-filter with water separator must
be installed. See directions for fuel filter
installation.
Fig. A.15: Fuel filter
