A.2.2 Components of coolant system
This connection mst be connected with
the external radiator. From here the cool
water flows first into the cooling water
connection block, thus into the generator
coil.

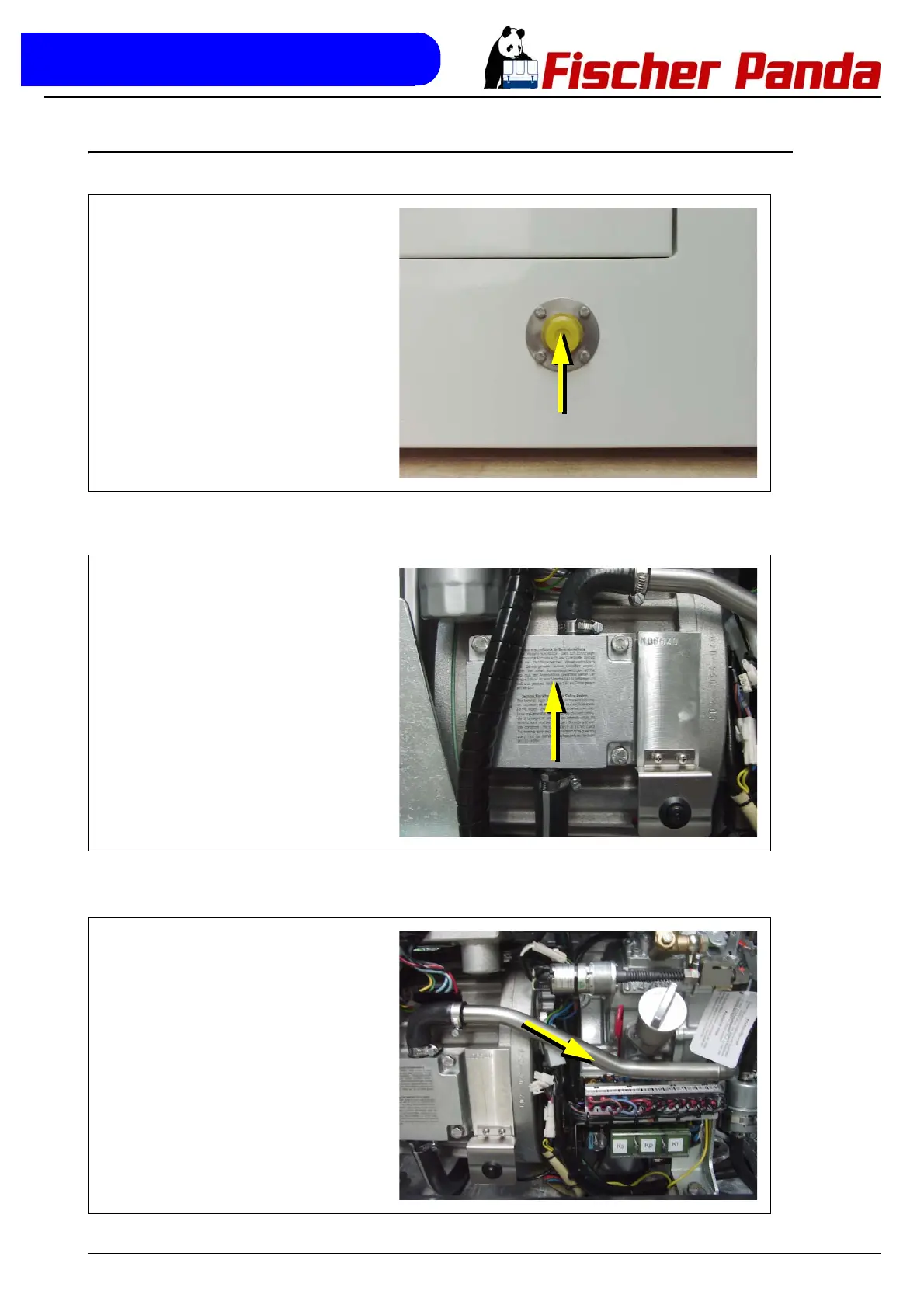

Fig. A.1: Coolant in-flow
Cooling water connection block
The cooling water is fed to the generator
and drained via the cooling water
connection block. The cooling water
connection block consists of an aluminium
alloy, which can behave like a sacrificial
anode.
Fig. A.2: Cooling water connection block
Cooling water pipe
From the cooling water connection block
the water leads to the internal cooling
water pump.
Fig. A.3: Coolant flow
