A.2.8 External components
AC-Control box
At operating the generator the operating
voltage of 120/230 and/or 230/400V lies at
the AC-Control box. It must be
guaranteed that the generator cannot be
inadvertently started, if the Control box is
opened. For this reason the negative pole
of the starter battery is to be disclamped
with all work on the electrical system.

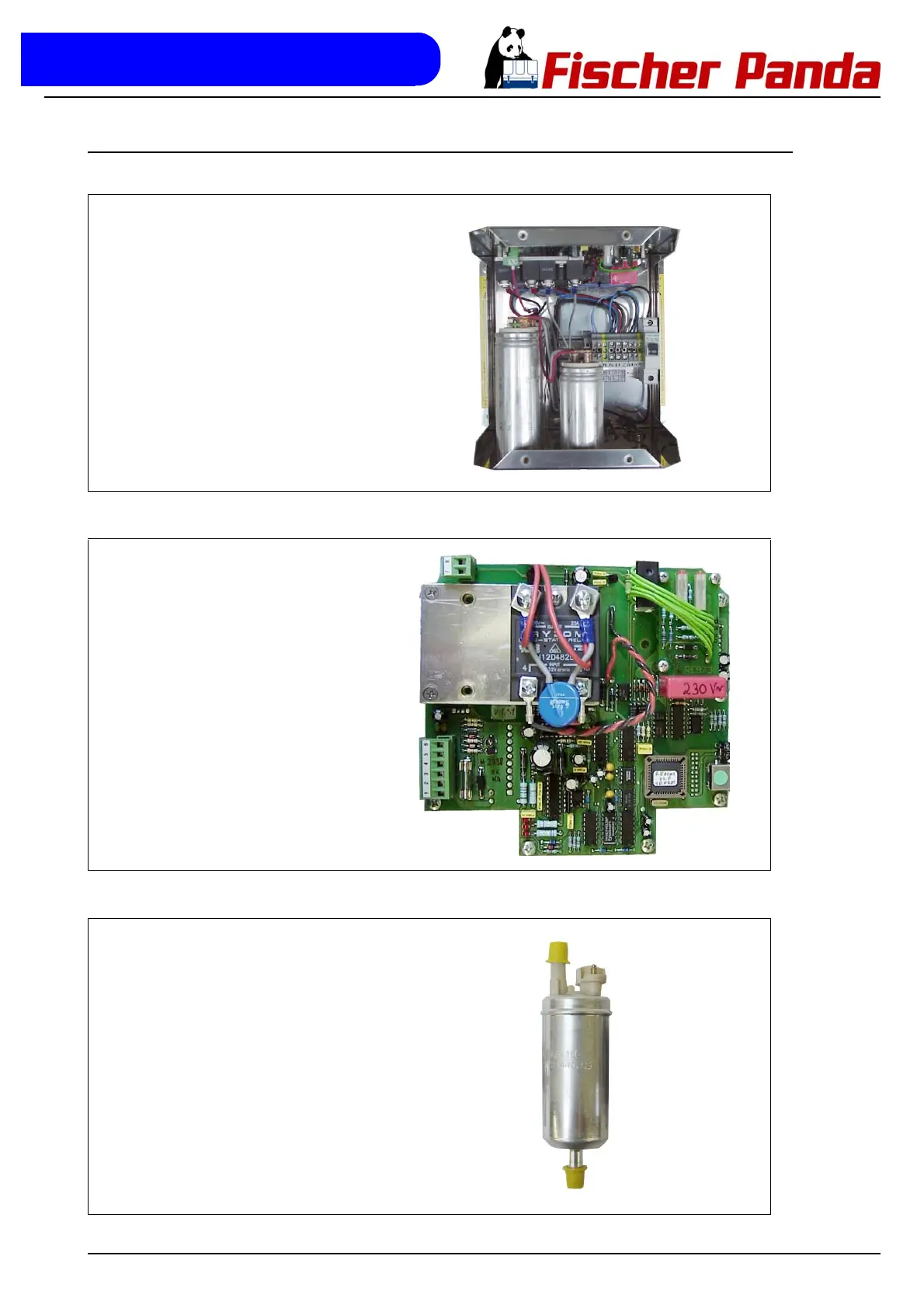

Fig. A.49: AC-Control box
Voltage control VCS
The voltage is regulated by the VCS in
connection with the actuator. The
adjusting points serve only as security for
the fact that on disturbances of the VCS
the upper and lower point cannot be
exceeded. The illustration shows the
printed board, which is accommodated in
the AC-Control box
Fig. A.50: VCS
Electrical fuel pump
The Panda generator is always supplied
with an external, electrical (12 V of DC)
fuel pump. The fuel pump must be always
installed in the proximity of the tank. The
electrical connections with the lead
planned for it are before-installed at the
generator. Since the suction height and
the supply pressure are limited, it can be
sometimes possible that for reinforcement
a second pump must be installed.
Fig. A.51: Electrical fuel pump
