A.1.3 Right Side View

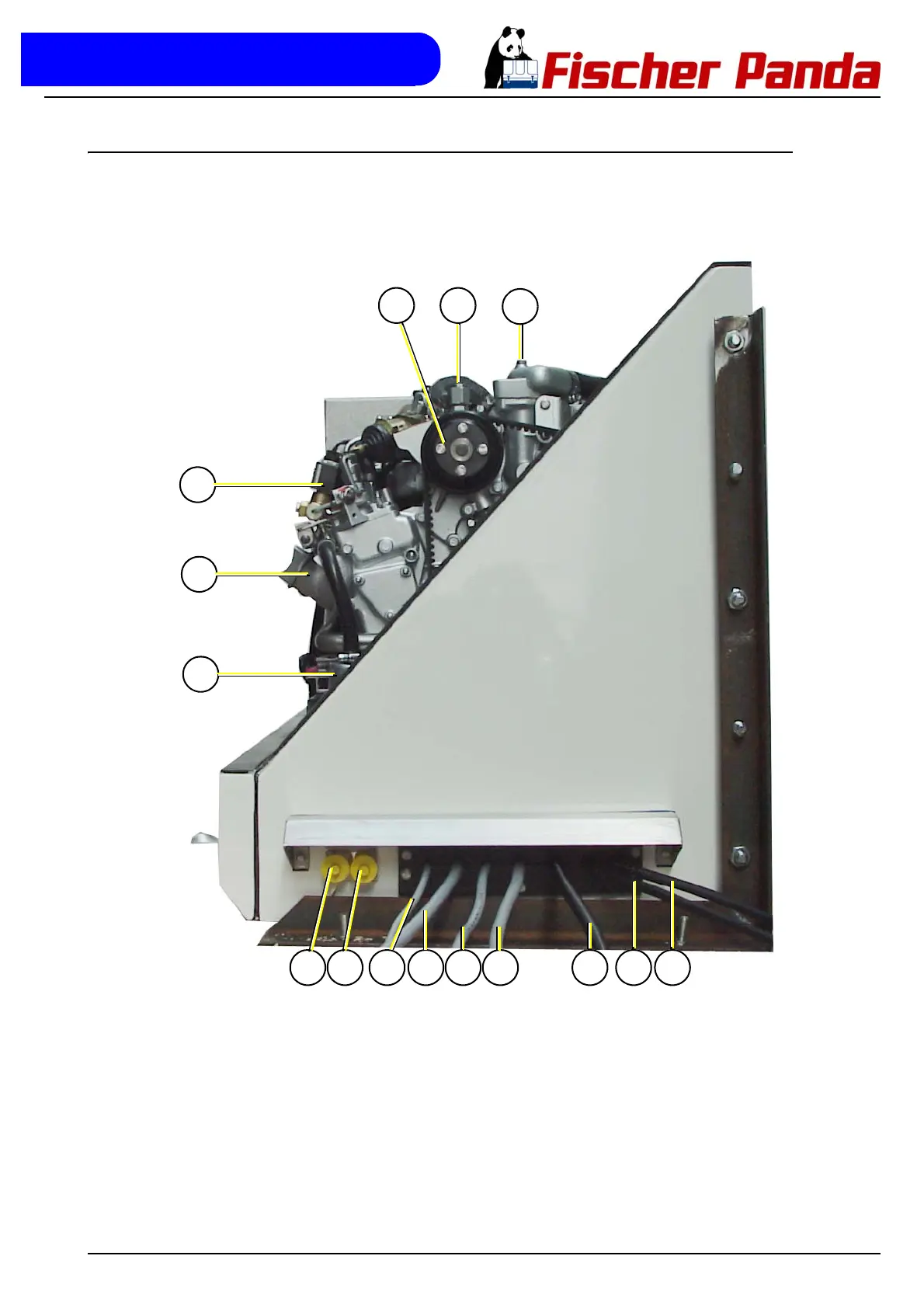

Fig. A.1.3-1: Right Side View
03
14 1507 08 09 10 11
13
12
0201
04
05
06
01. Pulley for internal cooling water pump
02. De-aerating screw internal cooling water pump
03. De-aerating screw thermostat housing
04. Fuel solenoid valve
05. Alternative oil filler neck
06. Fuel filter
07. Connection fuel in
08. Connection fuel out
09. Cable for fuel pump
10. Cable for remote control panel
11. Cable for VCS
12. Cable for AC-Control box
13. Load
14. Battery plus (+)
15. Battery minus (-)
